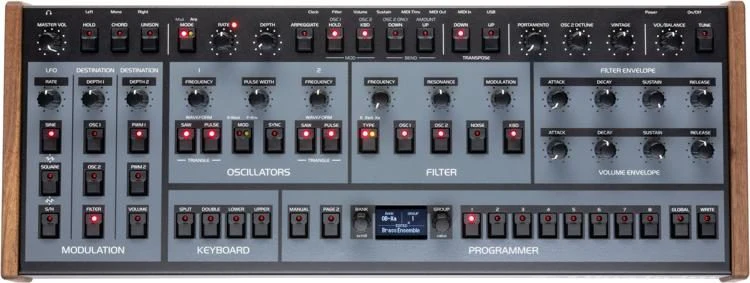

Oberheim TEO-5 Polyphonic Desktop Synthesizer Module

---

TEO-5 is your gateway to new sonic frontiers with modern modulations and vintage warmth. Experiment with through-zero FM shaped by the legendary SEM filter, topped off with iconic Oberheim effects. Compact, affordable, and bursting with creativity, TEO-5 sparks your musical journey, whether you’re a  budding artist or a seasoned pro.

---

VIDEO

---

FEATURES

• 5-Voice Pure-Analog Polyphony
• Two VCOs + Sub Oscillator per Voice
• Classic State-Variable SEM Filter
• Two DADSR Envelope Generators
• 64-Step Polyphonic Sequencer Arpeggiator
• 256+ Factory Programs + 256 User Slots
• Reverb, Multi-Effects, and Overdrive

---

SPECIFICATIONS

Voice Path

• 5-voice, 2x VCOs with saw, square/pulse, triangle, and noise

• Oscillator hard sync and X-Mod with linear through-zero FM
• Simultaneously selectable wave shapes plus sub-oscillator
• Discrete SEM-lineage VCF delivers authentic Oberheim tone and presence
• Filter State knob morphs from low-pass to high-pass through notch, with selectable band-pass mode
• Poly and Mono LFOs with 5 wave shapes and tempo sync
• Meticulously modeled envelope responses based on OB-8
• Modulation matrix with 19 slots x 19 sources x 64 destinations in a flexible design where almost any mod route is possible, including audio rate sources and destinations.

• Enhanced unison allows variable voice stacking from 1-5 voices

Hardware

• 256 factory programs in classic and modern styles, with storage space for 256 more custom user programs
• Direct program access, including single-button access to the current set of 16 programs
• Premium 3.5 octave FATAR velocity- and touch-sensitive keyboard allows unparalleled expression and responsiveness (keyboard version only)
• Velocity sensitivity adds expressiveness to volume and filter
• Channel Aftertouch adds real-time performance-based modulation
• Modulation wheel and spring-loaded pitch wheel with selectable range per program (wheels on keyboard version only)
• Hold switch latches held notes on
• Manual switch: when on, the front panel is live; what you see is what you hear

Ins & Outs

• Right, Left and Headphone outputs
• Footswitch sustain and expression pedal inputs
• 5-pin DIN MIDI In, Out, Thru
• USB MIDI

Power

• Power Requirements : AC Input

• AC Input Power : 100 to 240 VAC, 50 / 60 Hz

• Power Consumption : 30 W

---
