Sequential Trigon-6 6-voice Polyphonic Analog Synthesizer Module

---

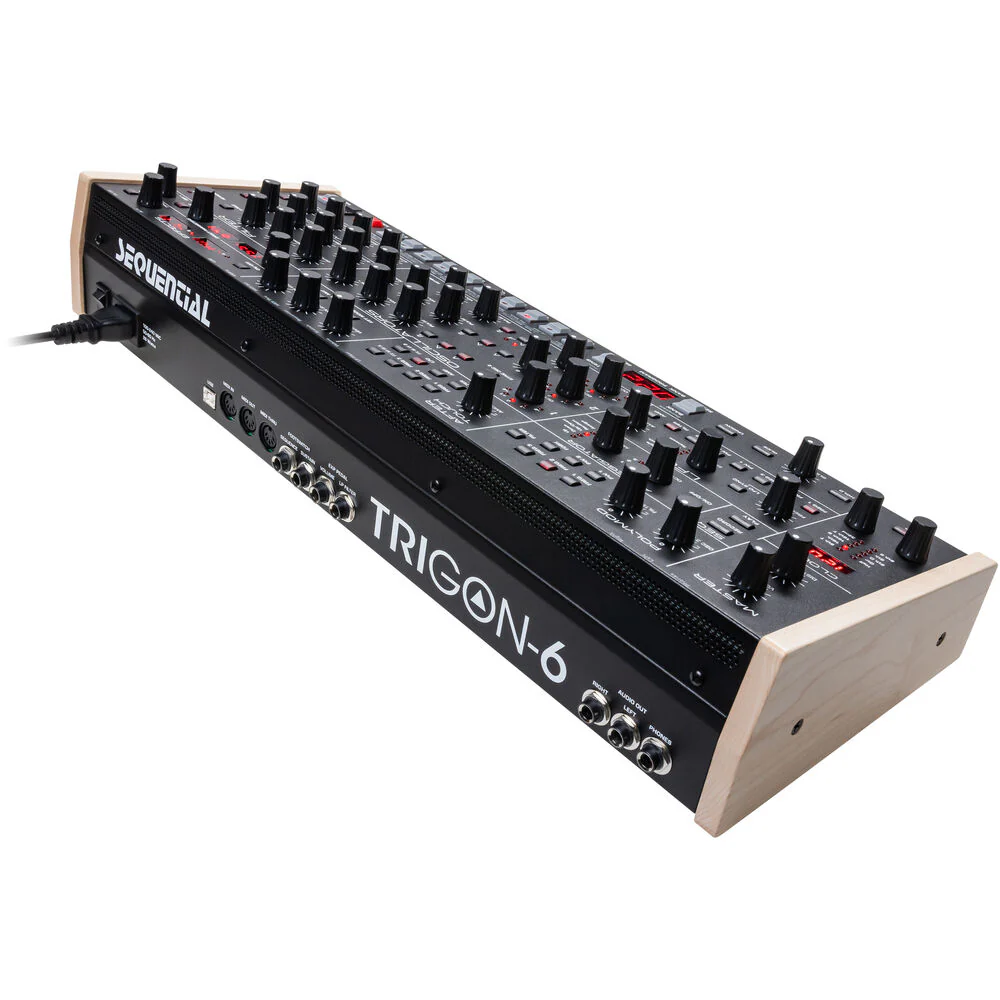

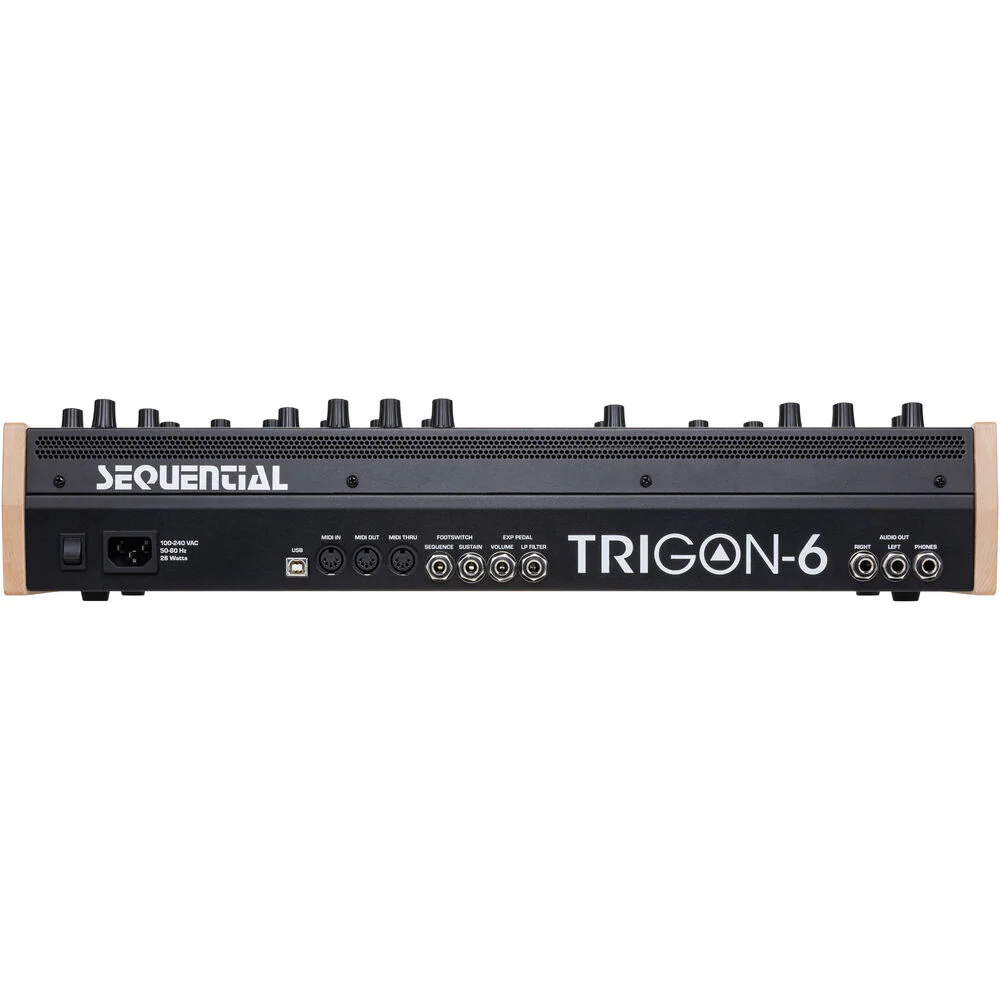

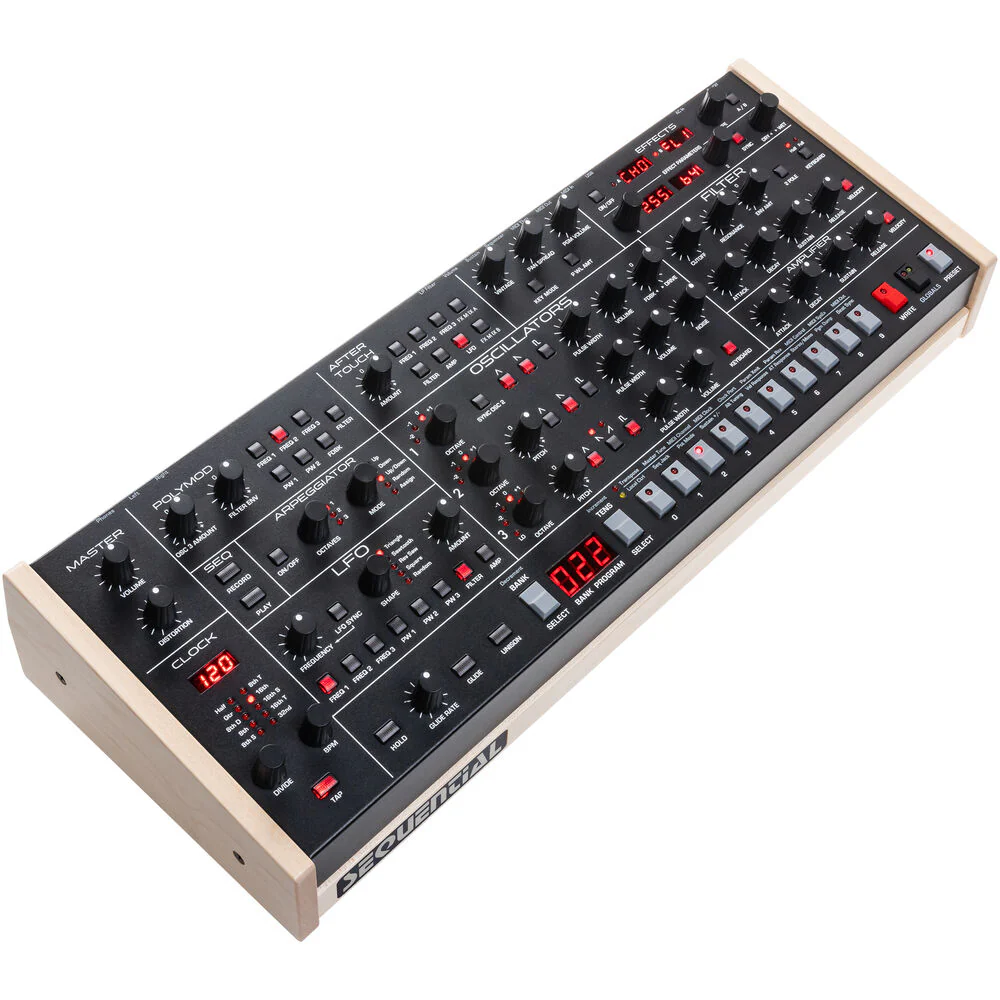

Create bold, in-your-face sounds with the Sequential Trigon-6 Desktop, a modern all-analog 6-voice polyphonic synthesizer module with the same form factor and user interface as the Prophet-6 and OB-6 desktop modules, but with a new twist: a 3-VCO-plus-ladder filter sound engine. This new design adds feedback, drive, and a 2-/4-pole slope switchable ladder filter with a ton of versatility and broad tonal palette, delivering maximum analog punch and presence. The module responds to channel aftertouch, while the control panel offers knob-per-function control with no menu diving. There are 500 factory programs and 500 user programs, which are organized into 10 banks of 100 presets. The Trigon-6 Desktop offers an ideal combination of portability and power for the project studio or the gigging musician.

---

FEATURES

• 6 Voices with 3 Oscillators per Voice
• Enhanced 2/4-Pole Resonant Ladder Filter
• Dual 24-Bit / 48 kHz FX Engine
• Poly Mod Modulation Matrix
• Responds to Channel Aftertouch
• Polyphonic Arpeggiator
• Polyphonic Step Sequencer with 64 Steps
• Analog Distortion + Vintage Mode
• 1000-Program Patch Memory
• MIDI Polyphonic Expression (MPE) Capable

---

SPECIFICATIONS

• General
  - Item Type : Desktop Synth Module
  - Sound Generation : Analog
  - Keyboard : No
  - Aftertouch : Channel/Mono Aftertouch (Destination Assignable)
  - Expression Controls : No
  - Number of Pads : No
  - Display : Monochrome LED
  - Weight : 10.9 lb / 4.9 kg


• Sounds
  -Number of Sounds, Kits, or Samples : 500x Factory Sound Preset | 500x User Sound Preset
  - Number of Song Presets : No
  - Maximum Polyphony : 6 Voice
  - Multitimbrality : 1-Part
  - Built-In Effects : 2x Multi-Effect: Bucket Brigade Delay, Chorus, Delay, Distortion, Flanger, Phaser, Reverb, Ring Modulator
  - Performance Functions : Arpeggiator, Sequencer, Transpose
  - Built-In Speaker : No


• Synthesis
  - Oscillators : 3x Variable (PWM, Sawtooth, Square, Triangle)
  - Mixer : No
  - Amplifiers : 1x VCA per Voice
  - Envelopes : 2x Amp/Filter Envelope Generator per Voice: Attack, Decay, Sustain


• Power
  - Power Requirements : AC Input
  - AC Input Power : 100 to 240 VAC, 50 / 60 Hz
  - Power Consumption : 26 W

---
