Telefunken TF47 Stereo Set Large-diaphragm Tube Condenser Microphone

---

Telefunken microphones are held in high esteem, and we’re not just talking about the vintage ones. Developed, handcrafted, and tested to fastidious quality standards in Telefunken’s Connecticut facility, the Alchemy Series is the company’s next-generation large-diaphragm tube condenser microphones. Inspired by classic mics but far from slavish re-creations these mics are designed and voiced from the ground up with unique sonic profiles. The TF47 is based on the bold, mid-forward "German sound." Drawing its inspiration from the historic U47 and M49, the TF47 captures full, deep low end and smooth, detailed highs and is an excellent choice for adding presence and depth to any source. Telefunken set a lofty design target for themselves: one of the most revered and sought-after microphones ever made, heard on countless iconic recordings.

---

INCLUDED ACCESSORIES

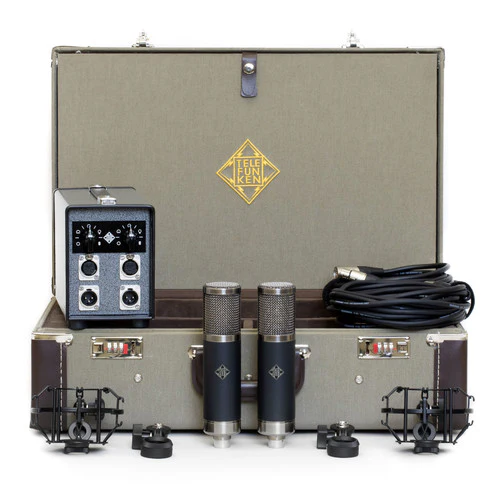

Dual Power Supply, 2x Tube Microphone Cables, 2x Elastic Shock Mounts, 2x Microphone Sleeves, Flight Case

---

FEATURES

• Matched Pair of T47 large-diaphragm tube condenser microphones
• Bold, midrange-forward sound, reminiscent of the U47
• K47-style center-terminated capsule and custom vintage-spec BV8 transformer, similar to the U47
• Smooth, detailed high end; full, round bass
• Cardioid, omnidirectional, and figure-8 polar patterns
• New old stock 5840W vacuum tube
• Hand-assembled in the USA

---

SPECIFICATIONS

• Microphone Type: Tube Condenser
• Mono/Stereo: Stereo Pair
• Polar Pattern: Cardioid
• Diaphragm Size: TK47 Diaphragm
• Frequency Response: 20Hz-20kHz
• Max SPL: 125dB SPL
• Output Impedance: <300 ohms
• Signal to Noise Ratio: 84dB (A weighted)
• Sensitivity: 22 mV/Pa
• Self Noise: 10dB (A weighted)
• Tube: 5840W NOS
• Color: Blue, Chrome
• Power Source: External M901S Dual Power Supply
• Connector: 7-pin XLR (mic), 3-pin XLR (power supply)
• Dimensions: 7.87" x 1.81"
• Weight: 1.56 lbs.

---
