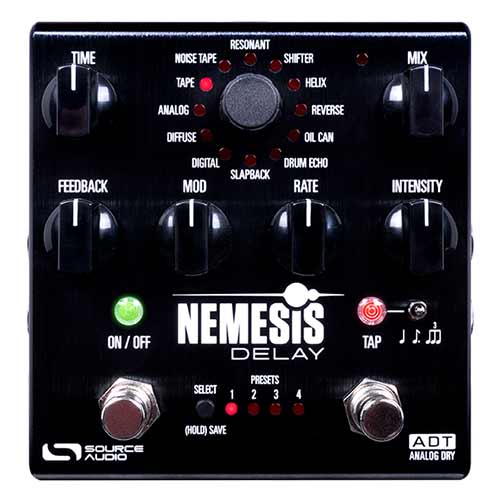

Source Audio Nemesis ADT Delay Pedal

---

Now boasting a fully analog dry-through signal path, the Nemesis ADT is a comprehensive update to Source Audio’s modern-classic multi-delay stompbox. Just like the original Nemesis, the Nemesis ADT comes equipped with 12 onboard digital delay engines, ranging from country-style slapback to atmospheric tape echo to psychedelic reverse delay and beyond. You also get an additional 14 delay engines to choose from via the intuitive Neuro app, which also doubles as a remarkably in-depth preset editor to sculpt and shape up to 128 MIDI-accessible presets (eight presets available onboard). Guitarists who require hands-free control up onstage will be sure to appreciate the Nemesis ADT’s beat-division-selectable tap tempo switch, programmable expression pedal functions, full MIDI functionality, and ambient “Freeze” switch. Selectable analog/buffered/relay-based true bypass and stereo I/O completes the package, all adding up to an immensely versatile do-it-all delay pedal that will please even the most echo-obsessed guitarist.

---

FEATURES

• A comprehensive update to Source Audio’s Nemesis delay pedal, boasting analog dry-through operation and an expanded array of features
• Analog dry-through operation splits your signal, resulting in a digital wet signal (your delay tone) and your uncolored analog dry signal
• 12 onboard digital delay engines to explore, with an additional 14 available via the Neuro app (available on iOS, Android, Mac, and PC)
• Save 8 presets directly to the pedal, with a total of 128 presets available via the Nemesis ADT’s extensive MIDI functions
• Stereo inputs and outputs for atmospheric ping-pong delay sounds
• Tap tempo switch with selectable beat divisions
• Hold or “Freeze” alternate function on the tap tempo switch to continuously loop a snippet of your delay signal
• Access MIDI control via the 5-pin MIDI DIN Thru/In inputs, USB port, or the Control Input
• Neuro app unlocks extremely in-depth control over your delay parameters
• Selectable analog buffered/relay-based bypass
• Expression control can be programmed to alter any combination of knobs
• Quickly change delay presets using an external 1/4-inch footswitch

---

SPECIFICATIONS

• Pedal Type:Delay
• Analog/Digital:Digital
• Presets:8 x onboard user, 128 x midi
• Effects:12 x onboard, 14 x Neuro App
• Tap Tempo:Yes
• Inputs:2 x 1/4"
• Outputs:2 x 1/4"
• MIDI I/O:2 x 5-pin DIN (In, Thru), USB
• Other I/O:1 x 1/4" TRS (switch/expression), 1 x 1/8" (control)
• USB:1 x Micro-B (midi, updates)
• Bypass Switching:Switchable: Relay-based True Bypass, Analog Buffered
• Software:Neuro App
• Power Source:9V DC (300mA) power supply
• Power Usage:200mA
• Height:2"
• Width:4.5"
• Depth:4.5"
• Weight:1 lbs.

---
