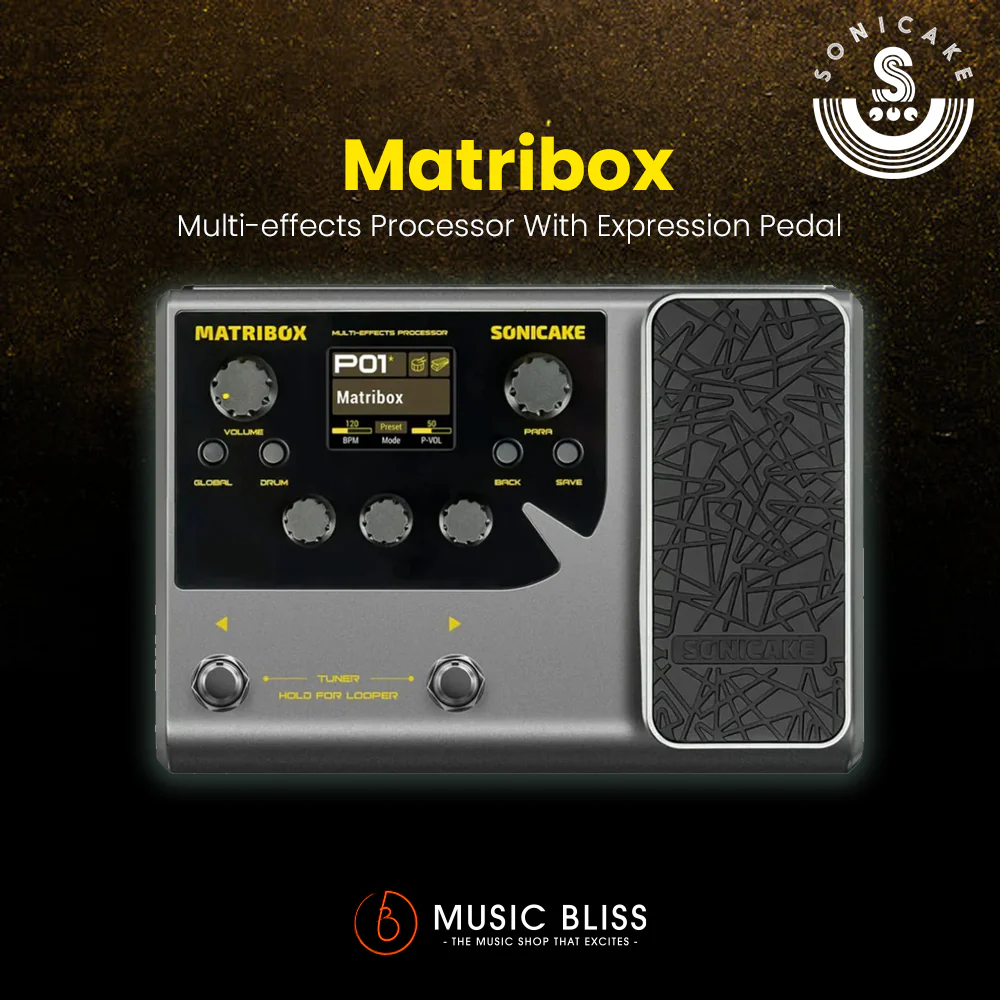

Sonicake QME-50 Matribox Multi-effects Processor With Expression Pedal

---

MATRIBOX is a compact multi-effects processor with potent circuit design and high quality digital effects. It contains 130+ various effects suitable for different musicians, whether you play electric guitar, acoustic guitar, bass, even keyboard, etc., it can make your playing sound more attractive. Of course, Matribox is more professional in the sound processing of electric guitar. The 40+ legendary amplifier models and more simulators based on classic effect pedals are all derived from white-box digital modeling technology. Every detail of the tone comes from real feedback from real electronic components. 9 movable effect modules to help you create your own effect matrix.

---

FEATURES

• Excellent white-box digital modeling technology to create high-quality tone

• 24-bit 44.1kHz signal processing

• Over 130 high quality effects

• Editable effect chain

• 40 legendary guitar/bass/acoustic amp types

• 38 factory IR cabinets

• Supports storing 15 user IRs

• 50+ dynamic/drive/EQ/mod/delay/reverb effects

• USB audio interface function with stereo audio streaming

• Stompbox and preset modes for different situations

• 198 presets (99 factory, 99 user)

• High quality looper

• 100 high quality drum patterns

• Durable metal chassis and footswitches

• Built-in chromatic tuner

• Intuitive PC/Mac editor

• 1/4" stereo outputs

• 1/8" headphone output

• Stereo 1/8" Aux Input

• Built-in expression pedal

• DC 9V power supply

---

SPECIFICATIONS

• Technical Specifications
  - A/D/A Converter : 24-bit high performance audio
  - Sampling Frequency : 44.1 kHz
  - SNR : 110dB
  - Maximum Simultaneous Effects : 9
  - Preset Memory : 99 User Presets/99 Factory Presets
  - Looper : 90 seconds of record time
  - Drum Machine : 100 Patterns


• Analog Input Connections
  - Guitar Input : 1/4” Unbalanced (TS), 1M Ohms
  - Aux Input : 1/8” Stereo (TRS), 10k Ohms


• Analog Output Connections
  - Left/Right Outputs : 1/4” Unbalanced (TS), 1k Ohms
  - Headphone Output : 1/8” Stereo (TRS), 47 Ohms


• USB Recording Specification
  - Sample Rate : 44.1 kHz
  - Bit Depth : Supports 16-bit or 24-bit


• Size and Weight
  - Dimensions : 200mm (W) x 137.5mm (D) x 53.6mm (H)
  - Unit Weight : 732g


• Power
  - Power Requirements : DC 9V center negative, 500mA


---
