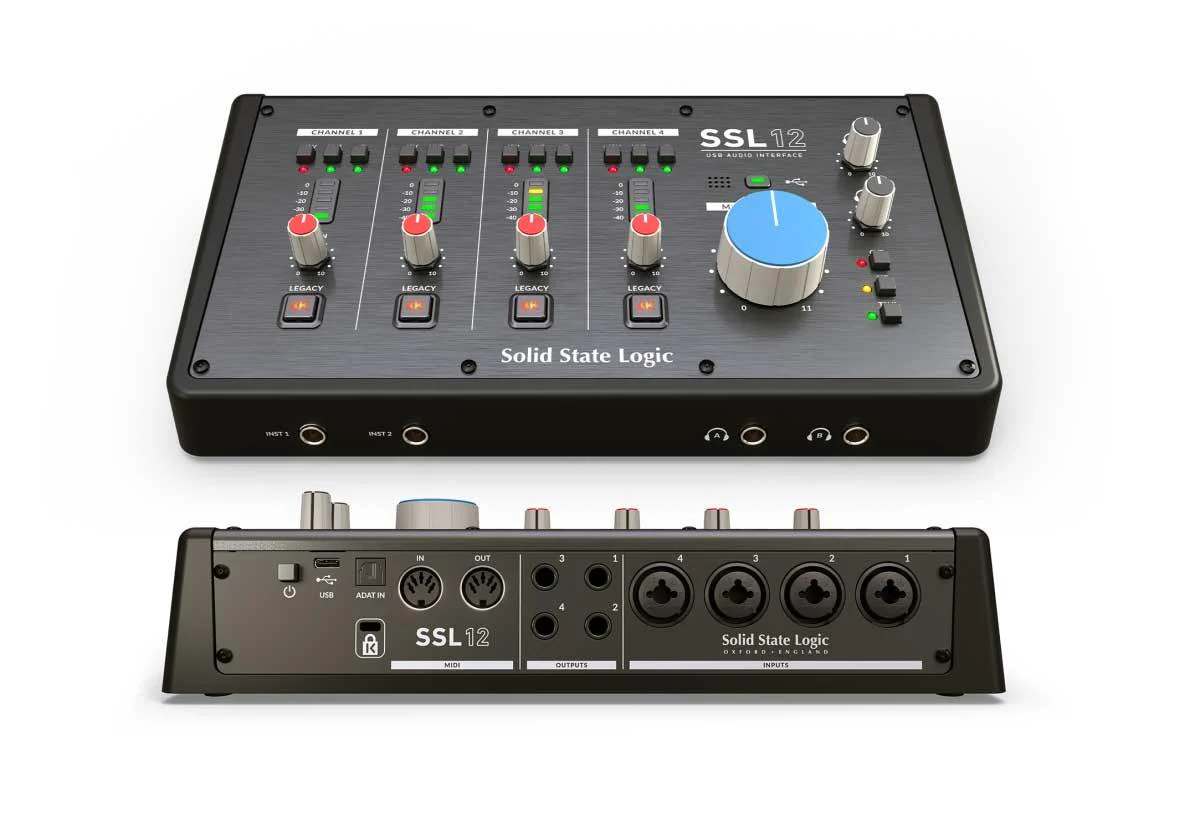

Solid State Logic SSL 12 USB Audio Interface (SSL12)

---

The SSL12 USB audio interface brings Solid State Logic’s multi-decade dominance of the professional studio realm into a whole new arena: the home studio! This 12-in/8-out interface boasts four pro-grade microphone preamps — with a further 8 channels of digital audio available via the ADAT in — and ultra-high fidelity 32-bit/192kHz AD/DA converters to capture everything from solo singer-songwriters to full drum kits with maximum clarity and definition. Next, a host of different I/O options including two Hi-Z inputs, two headphone outputs, and four balanced outputs allow you to tailor and fine-tune your setup for any studio application. Add in the three user-assignable buttons, dedicated per-channel 4K Legacy mode, built-in talkback mic, and all-encompassing software Production Pack, and the SSL12 represents an affordable way to upgrade your studio rig with the legendary sound and studio utility of Solid State Logic!

---

FEATURES

• 4 x SSL-designed mic preamps with 62dB of gain deliver iconic SSL tone
• 4 x XLR combo jacks to capture any source and setup — from solo singer-songwriters to full drum kits
• Per-channel Legacy 4K switches impart a touch of SSL’s legendary analog magic to your source with the click of a button
• 2 studio-quality headphone outputs for shared headphone playback
• Ultra-high fidelity 32-bit/192kHz AD/DA converters deliver maximum sonic clarity and definition
• ADAT in allows you to expand your setup with up to eight additional channels of digital audio
• SSL360° offers effortless headphone routing, with a built-in talkback mic that can be routed to Headphone A, B, and Line 3-4 outputs
• 4 x balanced outputs with precision Monitor Level
• 3 x user-assignable front panel switches to customize your setup
• 2 x high-Z inputs for easy direct guitar and bass recording
• Easily control CV input instruments and FX with DC-coupled outputs
• Flexible MIDI I/O
• Bundled with Ableton Live Lite, Hybrid Keys, and Komplete Start
• SSL Native software bundle with Vocalstrip 2 and Drumstrip
• 1.5GB of samples from Loopcloud
• AmpliTube SE for easy guitar/bass recording
• Celemony Melodyne Essential offers industry-grade vocal editing
• AAS Session bundle plug-ins provide a wealth of top-quality virtual instruments

---

SPECIFICATIONS

• Computer Connectivity:USB 2.0
• Form Factor:Desktop
• Simultaneous I/O:12 x 8
• Number of Preamps:4
• Phantom Power:Yes
• A/D Resolution:Up to 32-bit/192kHz
• Analog Inputs:4 x XLR-1/4" combo (mic/line), 2 x 1/4"
• Analog Outputs:4 x 1/4" TRS
• Digital Inputs:1 x Optical Toslink (ADAT)
• Headphones:2 x 1/4"
• MIDI I/O:In/Out
• USB:1 x Type C
• Software:SSL Production Pack
• OS Requirements - Mac:macOS 10.12 or later
• OS Requirements - PC:Windows 10 or later
• Bus Powered:Yes
• Power Supply:USB bus powered
• Height:4.04"
• Width:12.63"
• Depth:7.71"
• Weight:2.42 lbs.

---
