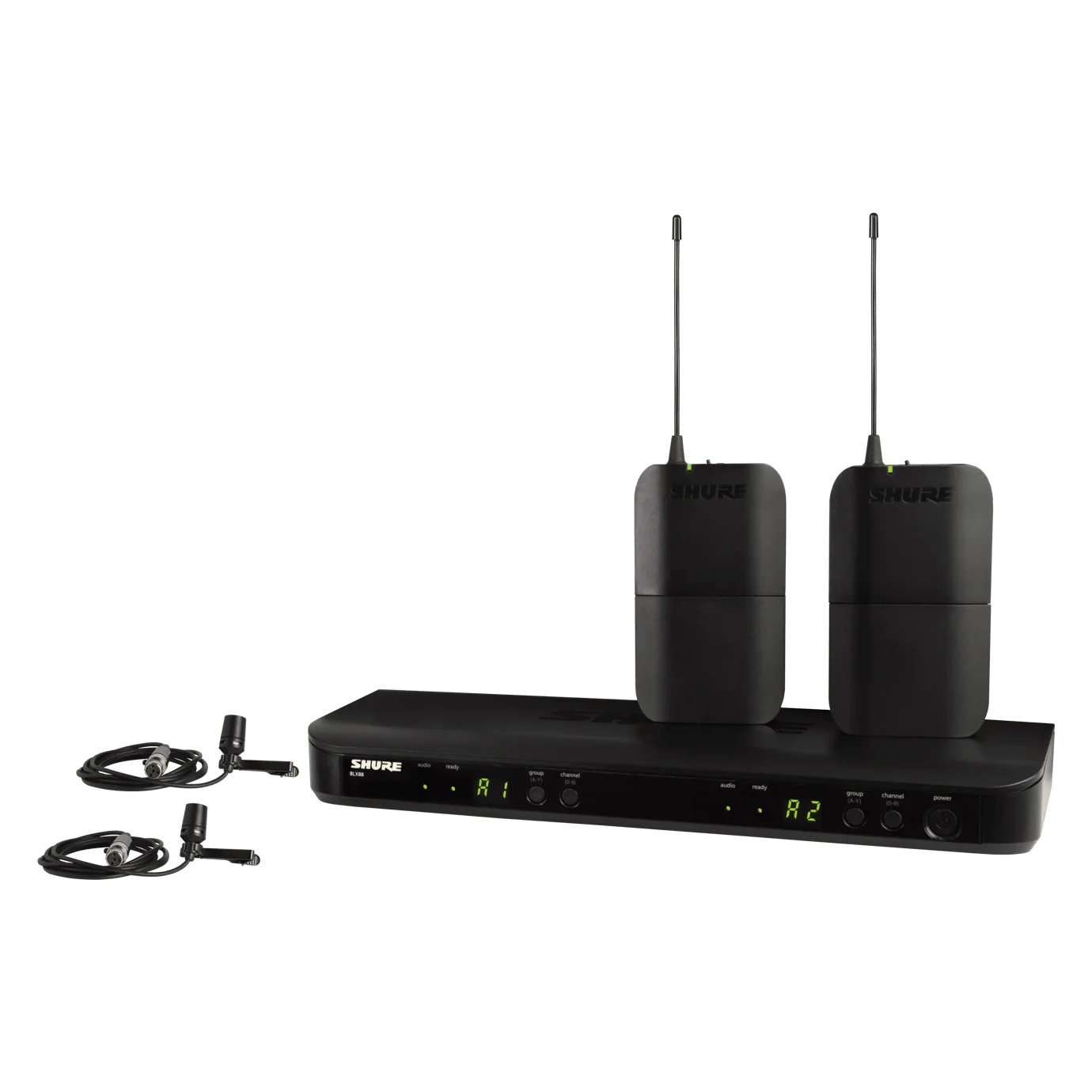

Shure BLX188/CVL Dual Channel Lavalier Wireless System, BLX88 Dual-Channel Wireless Receiver, BLX1 Bodypack Transmitter & CVL Lavalier Microphone

---

Shure BLX® Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.

---

FEATURES

BLX88 Dual Wireless Receiver

• ¼" and XLR audio outputs
• Up to 12 compatible systems (region dependent)
• Microprocessor-controlled internal antenna diversity
• One touch QuickScan locates the best open Frequency
• Two color audio status indicator LED
  • Green: Normal audio levels
  • Red: Excessive audio levels (overload/clipping)

BLX1 Wireless Bodypack Transmitter

• Adjustable gain control
• Power and battery status LED
• Quick and easy frequency matching
• 100 m (300 ft.) operating range (line of sight)
• AA batteries (included) provide up to 14 hours of continuous use

CVL Centraverse Lavalier Condenser Microphone

• Miniature clip-on lavalier microphone for low visibility
• Included windscreen reduces plosives, wind and breath sounds
• Included tie clip allows for hands-free use, perfect for presenters
• Tailored frequency response optimized for speaking and presentations
• Legendary Shure precision engineering for durability and performance
• Permanently charged electret condenser element for clear vocal reproduction
• TA4F (TQG) connector seamlessly integrates with Shure wireless bodypack systems
• Unidirectional (cardioid) polar pattern rejects unwanted noise for improved sound quality

---

SPECIFICATIONS

System

• RF Bandwidth : 24 MHz
• Dynamic Range : 100 dBA
• Max Systems per Setup : 12
• Diversity : Antenna Diversity
• Number of RF Channels : 123
• Wireless Transmission : Analog UHF
• Included Transmitters : 2 x Bodypack
• RF Frequency Band : H9: 512 to 542 MHz
• Max Operating Range : 300' / 91.4 m (Line of Sight)

Receiver

• Housing : ABS
• Form Factor : Tabletop
• Weight 15.1 oz / 429 g
• Antenna : 2 x Internal, Fixed
• 2 x 1/4" TRS Female Output
• Number of Audio Channels : 2
• Audio I/O : 2 x XLR 3-Pin Male Output
• Approximate RF Sensitivity : -105 dBm
• Power Requirements : AC/DC Power Adapter
• Operating Temperature : 0 to 135°F / -17 to 57°C
• Dimensions : 15.3 x 1.6 x 4.6" / 388 x 40 x 116 mm
• Frequency Response : 50 Hz to 15 kHz (Dependent on Mic)
• Impedance : XLR Outputs : 200 Ohms | 1/4" Outputs : 50 Ohms
• AC/DC Power Adapter : 12 to 15 VDC at 160 mA, Center-Positive (Included)
• Display & Indicators : 2 x Multi-Segment LED (Channel, Group) | 4 x LED (AF Level, Sync)
• Audio Output Level : XLR Outputs : -27 dBV (Mic Level) | 1/4" Outputs : -13 dBV (Instrument Level)

Microphone

• SNR : 72 dB
• Sound Field : Mono
• Form Factor : Lavalier
• Polar : Pattern Cardioid
• Weight : 0.88 oz / 25 g
• Impedance : 600 Ohms
• Operating Voltage : 5 V
• Dynamic Range : 117 dB
• Maximum SPL : 139 dB SPL
• Cable Length : 4.27' / 1.3 m
• Capsule : Electret Condenser
• Equivalent Noise Level : 22 dB
• Frequency Range : 50 Hz to 20 kHz
• Output Connectors : 1 x TA4/Mini XLR 4-Pin Female (Lockable)

---
