Rupert Neve Designs R10 10-slot 500 Series Chassis

---

Rupert Neve Designs R10 500 Series chassis is a 10-space, steel rack enclosure that sports XLR and 1/4" TRS I/O for compatibility with any studio setup. To ensure your modules are properly powered, the R10 has 200% of the required current, so you’ll never be underpowered. It also has a built-in LED display to show current consumption, and a double-shielded internal power supply that won’t add any interference or unwanted noise to your signal. Rupert Neve is an audio legend. So you know when he designs a 500 Series chassis, it's top-shelf, all the way. Give your 500 Series modules the pampering they deserve with the Rupert Neve Designs R10 500 Series rack.

---

FEATURES

• Supplies more than 2,400mA internal power (200% of VPI-spec required current) to handle any module
• Double-shielded internal power supply designed to avoid magnetic induction in module slots
• LED current consumption meter monitors what your modules are using
• Variable-position screw holes make for quick and easy module insertion
• Switching-mode PSU with frequencies considerably outside audible band
• Onboard linking for stereo operation using two modules such as compressors

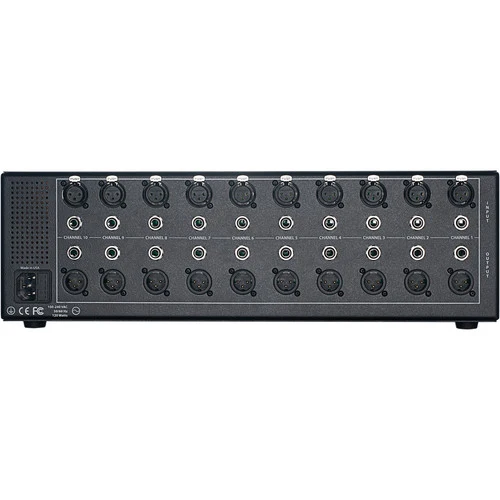

• XLR and 1/4" TRS I/O for custom channel strip flexibility

---

SPECIFICATIONS

• Number of Slots: 10
• Inputs: 10 x XLR, 10 x 1/4"
• Outputs: 10 x XLR, 10 x 1/4"
• Power Supply: Standard IEC AC cable, Internal switch-mode power supply

---
