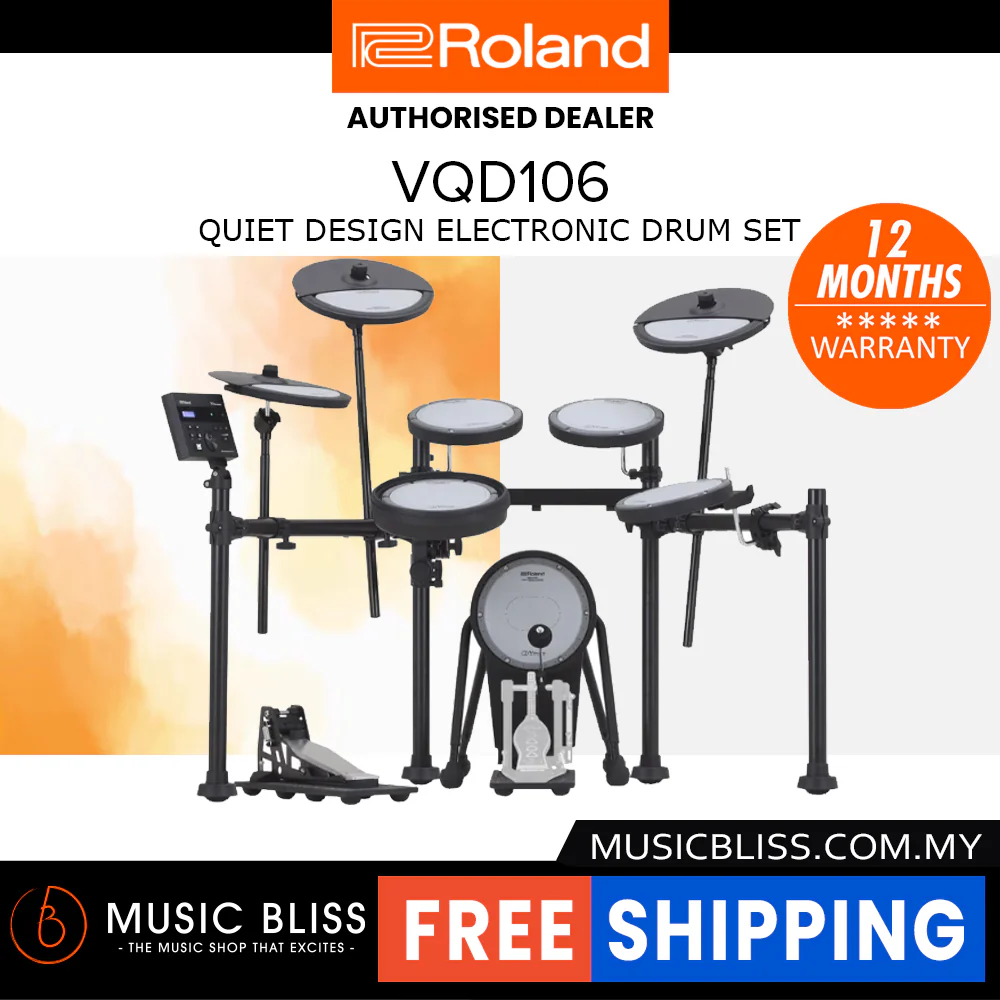

Roland VQD-106 Quiet Design Electronic Drum Set (VQD106)

---

When practicing at home, drummers love to dig in and immerse themselves in the experience. But those around the drummer just want the noise to stop. V-Drums Quiet Design makes everyone happy, providing the lowest in-home playing noise in V-Drums history. Our groundbreaking technologies make the impossible possible, allowing you to play without restraint at any time—while others who can’t see you will never know you’re drumming at all.

---

FEATURES

• Revolutionary electronic drum kit with ultra-quiet noise performance for home playing
• Up to 75 percent reduction in playing noise compared with a conventional V-Drums kit
• A complete system with specially engineered pads, pedal bases, and stand
  Includes the TD-07 module and connection cables
• PDQ-8S snare pad with 8-inch playing surface, 10-inch rim, and independent head/rim triggering
• Three PDQ-8 single-trigger tom pads with 8-inch playing surfaces
• Two 12-inch CYQ-12 cymbal pads for crash and ride with bow/edge triggering and choke support
• CYQ-12 hi-hat pad and low-noise FD-9 hi-hat control pedal
• KDQ-8 kick pad with 8-inch playing surface and support for single and double kick pedals
• KDB-Q quiet kick beater
• Noise-isolating NEQ-K and NEQ-H bases for kick and hi-hat pedals
• Integrated Bluetooth lets you wirelessly stream sound from smartphones, tablets, and other Bluetooth devices and send MIDI data to music apps
• Advanced built-in metronome with the ability to adjust time signature, note value, and click tone
• Onboard Coach function provides interactive tools to build timing skills and track progress
• USB for recording audio and MIDI data to computer music software
• Free lessons with Melodics™ for V-Drums software (macOS and Windows)

• Drum throne and kick pedal not included

---

SPECIFICATIONS

• Kit configuration (*1)
• Drum sound module: TD-07
  Kick: KDQ-8
  Snare: PDQ-8S
  Hi-hat: CYQ-12
  Hi-hat control pedal: FD-9
  Tom: PDQ-8 x 3 *2
  Crash: CYQ-12
  Ride: CYQ-12
  Pedal Base: NEQ-K (for kick pedal), NEQ-H (for Hi-hat pedal)
  Drum stand: Four-post type rack stand with anti-vibration mechanism
• Drum kits
• 50 (Preset: over 20)
• Instruments
• 143
• Effect Types
• Pad Equalizer: each pad
  Overhead Mic Simulator
  Room
  Multi-Effects: 1 system, 30 types
• Coach functions (5 modes)
• Time check (easy)
  Time check (hard)
  Quiet count
  Auto up/down
  Change-up
• Metronome
• Tempo (20--260)
  Rhythm type (5 types)
  Sounds (15 types)
• Bluetooth
• Supported standards: Bluetooth Ver 4.2
  Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
  Codec: SBC (Support to the content protection of the SCMS-T method)
• Display
• 16 characters x 2 lines LCD (with backlight)
• Connectors
• OUTPUT/PHONES jack: Stereo miniature phone type
  MIX IN jack: Stereo miniature phone type
  USB COMPUTER port: USB B type
  TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Crash 2, Ride, Hi-hat control)
• USB COMPUTER
• Speed: Hi-speed USB
  Driver mode: Generic, Vender
  Protocol: USB MIDI, USB Audio *3
• USB Audio
• Sampling Rate (original): 44.1 kHz
  Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
  Record: 2 channels
  Playback: 2 channels
• Power supply
• AC adaptor (DC 12 V)
• Current draw
• 250 mA
• Width
• 1,300 mm
  51-3/16 inches
• Depth
• 1,200 mm
  47-1/4 inches
• Height
• 1,200 mm
  47-1/4 inches
• Weight
• 29.8 kg / 65 lbs 12 oz

---
