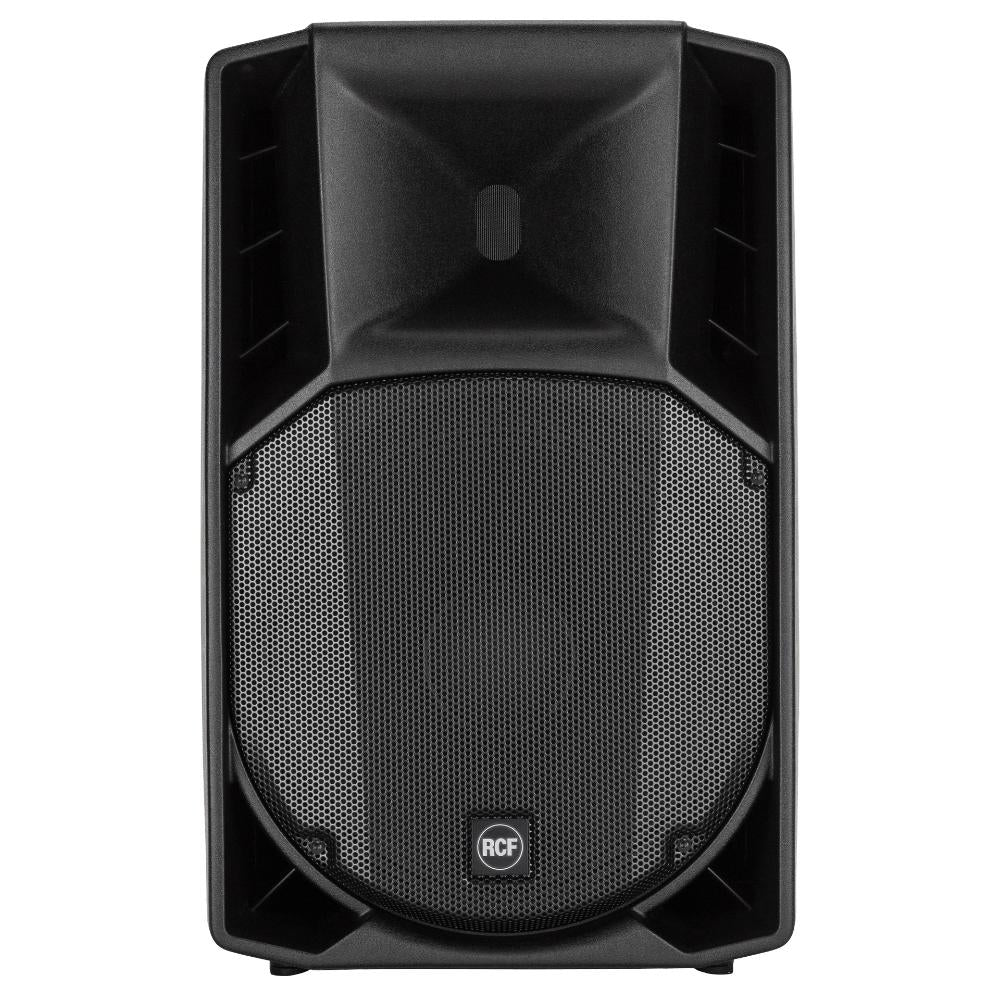

RCF ART 735-A MK4 - 15" 2-Way 1400W Active Speaker (ART735AMK4 / ART 735A MK4)

---

The ART 735-A MK4 is a unique speaker in its category. The titanium dome, 3.0" voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15” neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

---

FEATURES

• 132 dB Max SPL
• 1400 WATT 2-way peak power
• Innovative DSP Processing
• 1.4" Titanium Compression Driver, 3.0" v.c. Neodimium
• 15" Woofer
• 800 Hz crossover point for perfect vocal reproduction
• 90°x60°, wide dispersion constant directivity horn
• FiRPHASE Technology

---

SPECIFICATIONS

• Acoustical specifications
  - FREQUENCY RESPONSE : 45 Hz ÷ 20000 Hz
  - MAX SPL @ 1M : 132 dB
  - HORIZONTAL COVERAGE ANGLE : 90°
  - VERTICAL COVERAGE ANGLE : 60°


• Transducers
  - COMPRESSION DRIVER : 1 x 1.4'' neo, 3.0'' v.c
  - WOOFER : 15'', 3.0'' v.c


• Input/Output section
  - INPUT SIGNAL : bal/unbal
  - INPUT CONNECTORS : XLR, Jack
  - OUTPUT CONNECTORS : XLR
  - INPUT SENSITIVITY : -2 dBu/+4 dBu
  - MIC. INPUT SENSITIVITY : -32 dBu


• Processor section
  - CROSSOVER FREQUENCIES : 800 Hz
  - PROTECTIONS : Thermal, RMS
  - LIMITER : Soft Limiter
  - CONTROLS : Volume, Boost, Mic/Line


• Power section
  - TOTAL POWER : 1400 W Peak, 700 W RMS
  - HIGH FREQUENCIES : 400 W Peak, 200 W RMS
  - LOW FREQUENCIES : 1000 W Peak, 500 W RMS
  - COOLING : Convection
  - CONNECTIONS : VDE


• Standard compliance
  - CE MARKING : Yes


• Physical specifications
  - CABINET/CASE MATERIAL : PP Composite
  - HARDWARE : 2 x M10
  - HANDLES : 1 Top, 2 Side
  - POLE MOUNT/CAP : Yes
  - GRILLE : Steel
  - COLOR : Black


• Size
  - HEIGHT : 708 mm / 27.87 inches
  - WIDTH : 437 mm / 17.2 inches
  - DEPTH : 389 mm / 15.31 inches
  - WEIGHT : 21.4 kg / 47.18 lbs

---
