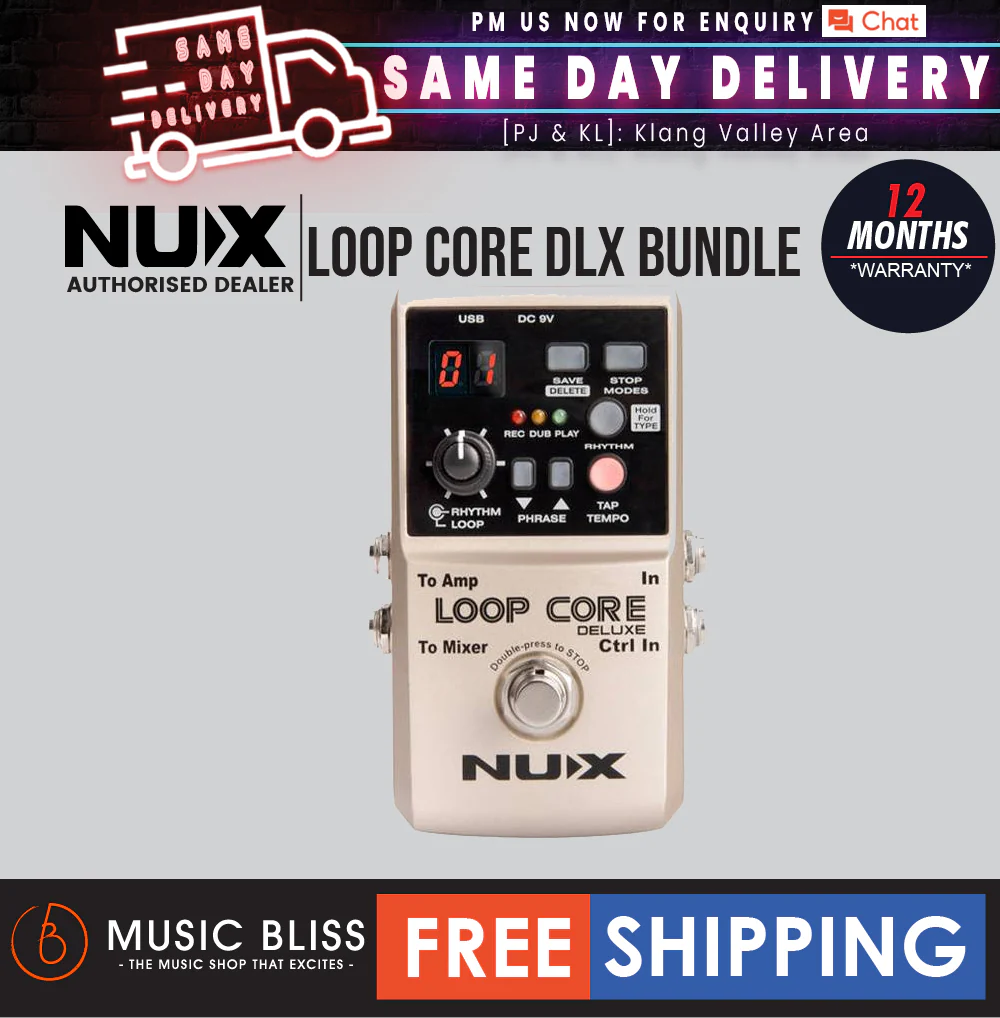

NUX Loop Core Deluxe Effect Drum Rhytm Pedal Bundle with NMP-2 Dual Footswitch

---

Loop Core Deluxe allows you to record loop phrases up to 8 hours with unlimited layers in 24-bit high-resolution audio quality into 99 saved memories.

---

FEATURES

• Loop Core Deluxe's Drum Rhythm
• Nothing feels better than playing your guitar along with realistic drum rhythms. Loop Core Deluxe’s all-new drum machine comes with 40 different drum rhythms (30 in 4/4, 10 in 3/4) covering different styles of genres including rock, pop, blues, jazz and much more.
• Stop Modes
• To finish your playing, you can choose 3 different modes:
• 1- NORMAL MODE: Double tap - Instant Stop
• 2- FINISH MODE: Plays until the end of the last measure
• 3- FADE OUT MODE: 10 seconds Fade-Out
• Importing and Backing up Your Loop Phrases
• Connect your Loop Core Deluxe to your PC/Mac with a Mini-B USB connector to import available loop phrases or to back up yours. Loop Core Deluxe is only compatible with 24-bit/44.1kHz WAV files.
• Loop Core Deluxe Bundle
• The LOOP CORE BUNDLE includes the additional NMP-2 DUAL Footswitch which is absolutely the easiest way to switch between loop phrases. Your recordings for verse, chorus, and bridge parts, can now be seamlessly accessed utilizing the convenient DUAL footswitch.

---

SPECIFICATIONS

• Sampling Rate
• 44.1KHz
• A/D Converter
• 24bit
• Signal Processing
• 24bit
• Frequency Response
• 20Hz - 20KHz
• Noise Level
• -98dBu
• Dynamic Range
• 101dB
• Power Consumption
• 65mA - 70mA
• Input
• Mono
• Outputs
• Amplifier Out, Mixer Out (Cabin Simulated)
• Display
• LED & LED Segment Displays
• Power
• 9V DC Negative Tip / 9V Battery
• Dimensions
• 122(L) x 72(W) x 47(H) mm
• Weight
• 270g

---

FAQ

Is warranty coverage available for my product?

Yes! Majority of our product provides a minimum 1 year warranty on the electronic parts.

Can I test the product prior to my purchase?

Definitely! You can contact our sales team through 016-3111286 or head over to Music Bliss showroom to view the item before buying it. We are honored to have you here!

Is a power supply needed for the pedals?

We highly recommend you to connect to a power supply for your pedal(s). This minimizes the hum and ensure that your pedals get the cleanest power supply with optimum output and tone.

How long will it take to deliver?

It usually takes only 3-7 working days for the item to be safely delivered to your doorstep. Self-collection and Lalamove (local delivery) is available as well!

Can I self-collect my item(s)?

Of course! You can head over to Music Bliss showroom for self-collection during our working hours.
10am - 7.30pm (Mon - Thurs)
10am - 7pm (Fri - Sat)
10am - 6pm (Sun)

Can I use Lalamove / Grab / Same Day Delivery as a delivery option?

Yes! Please note that the delivery hour for Lalamove service is only available for local delivery, from 11am to 5pm daily. For delivery ,please check out choosing Lalamove/Grab service or contact the mainline 016-3111286.
