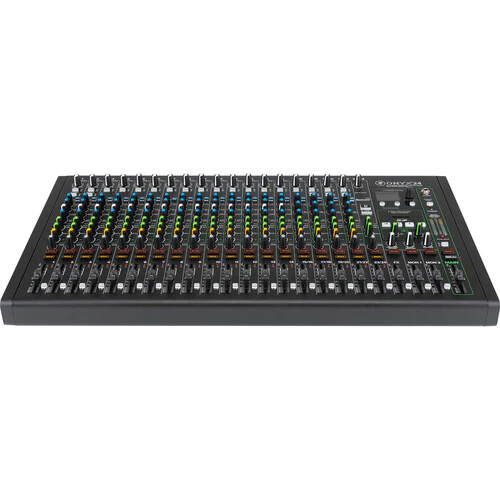

Mackie Onyx24 24-channel Analog Mixer with Multi-Track USB

---

When it comes to world-class quality and versatility, the Mackie Onyx24 24-channel Analog Mixer with Multi-track USB is the perfect go-to board for all your live sound and recording needs. Compact enough for both home use and the traveling engineer, the Onyx24 combines 24-bit/96kHz multitrack recording with high-gain preamps and a low-noise design to meet the uncompromising demands of professionals everywhere. With its British-style sound, Mackie's timeless Perkins EQ is a favorite among many Music Bliss engineers, and the studio-grade effects sound stellar when used with any mix. Top it off with a full-color display and easy navigation, and you get a formidable analog mixer capable of capturing audio with impeccable quality.

---

FEATURES

• 18 award-winning Onyx mic preamps
• Analog circuitry delivers premium-quality sound with minimum noise
• Analog/USB channel strips with flexible routing
• Studio-grade effects with user customization options
• 3-band Perkins EQ with On/Off hard bypass switches
• Switchable hi-Z inputs for guitars, bass, and other instruments
• 100Hz low-cut filter and 48V phantom power on all mic channels
• High-resolution 24-bit/96kHz multi-track recording to Mac/PC via USB
• Full-color display and single-knob interface
• Dedicated buttons for Previous, Next, Record, and Play/Pause
• Bluetooth streaming capabilities

---

SPECIFICATIONS

• Type: Analog Mixer
• Channels: 24
• Computer Connectivity: USB, Bluetooth
• Inputs - Mic Preamps: 18 x XLR
• Phantom Power: Yes
• Inputs - Line: 24 x 1/4", 1 x 1/8"
• Outputs - Main: 2 x XLR (main), 2 x 1/4" (main), 2 x 1/4" (control room)
• Send/Return I/O: 1 x 1/4" (FX), 2 x 1/4" (mon)
• Headphones: 1 x 1/4"
• USB: 1 x Type B
• Bluetooth: Yes
• Other I/O: 1 x 1/4" (footswitch)
• EQ Bands: 4-band EQ
• Effects: Yes
• Storage: SD card slot
• Power Source: Standard IEC AC cable

---
