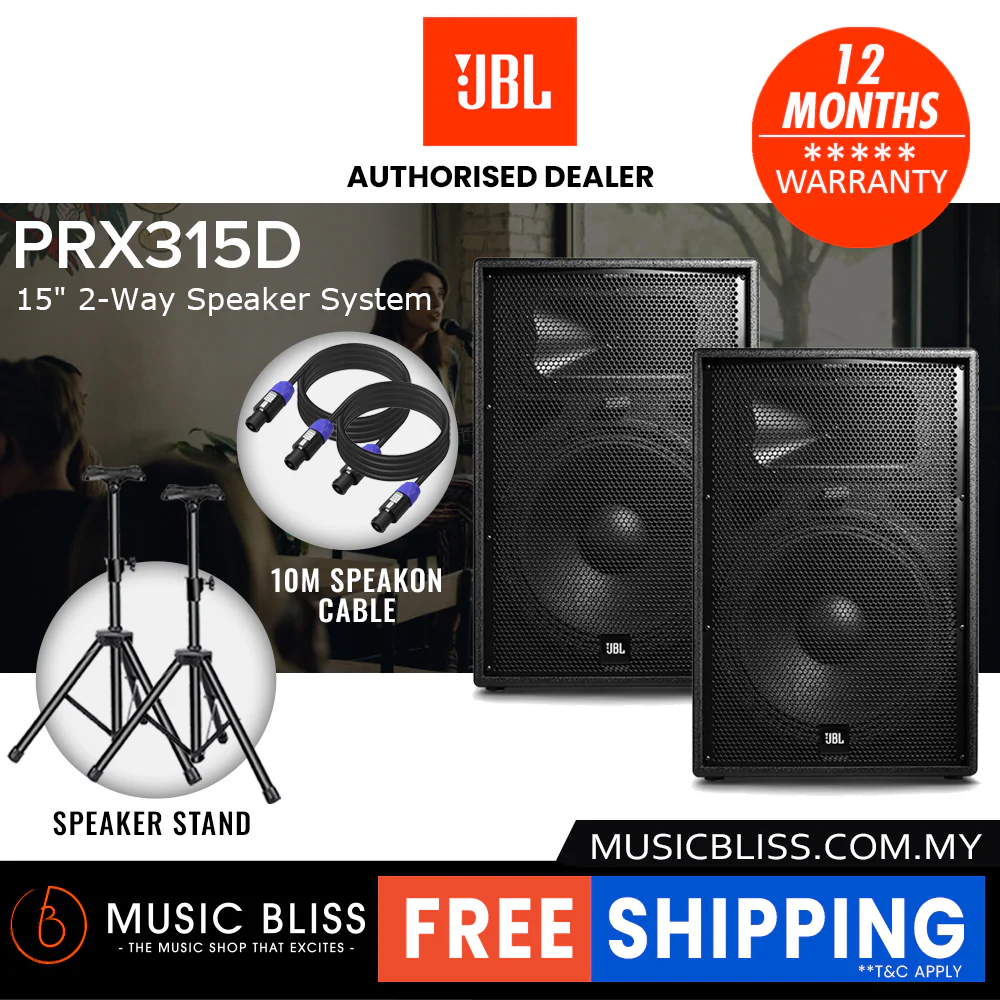

JBL PRX315D 15" 2-Way Speaker System (PRX-315 / PRX315)

---

PRX315D is a 15-inch portable two-way speaker system designed for live performance, music playback or reinforcement of speech. For the low ends, PRX315D uses a premium 15-inch low frequency driver with a edge-wound ribbon voice coil of 2 ½ inch (64mm) in diameter to bring the system solid bass, high efficiency and large power handling capabilities. A JBL 2412 1-inch ferro-fluid cooled compression driver with titanium diaphragm provides the system with clean and warm high notes and uncompromised reliability. JBL SonicGuard™ technology improves system stability by protecting the high frequency driver from excessive power without interrupting the show. Apart from the drivers, fault-free performance of the system also relies on the precision-crafted crossover network, which feeds the two drivers with clear cut frequencies with minimum overlap and is capable of handling high power with its high-voltage capacitors and inductors. The Progressive Transition™ waveguide mounts on top of the tweeter and provides the system with superior coverage control, reduced distortion and smoother frequency response.

PRX315D encloses all the acoustic components in a rugged cabinet constructed from 15mm MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low frequency response. Two all-steel handles are integrated to sides of the case to make transport and setup easier. A 36-mm socket allows PRX315D to be mounted on a speaker pole and to work as a main or fill. The socket supports either up-straight standing or 10° tilting, helpful when the audience coverage needs to be uniformed. For the front of the speaker, a dent-resistant grille made from 18-gauge perforated steel protects the components inside from damage on the move or during the show.

---

FEATURES

• Premium 15-inch low frequency driver with a 2 ½ inch diameter edge-wound ribbon voice coil for solid and extended bass, high efficiency and power handling
• JBL 2412 1-inch ferro-fluid cooled compression driver with titanium diaphragm delivers clean and warm high notes and uncompromised reliability
• JBL SonicGuard™ technology constantly protects the high frequency driver from excessive power
• Precision-crafted crossover feeds drivers with clear-cut frequencies and delivers coherent summation in the crossover region
• Progressive Transition™ waveguide provides superior coverage control, reduced distortion and smoother frequency response
• Rugged enclosure made from 15mm MDF (Medium Density Fiberboard)
• 36-mm dual angle pole-mounting socket
• Dent-resistant grille protects the internal from damage on the move or during the show
• For live performance, music playback or reinforcement of speech

---

SPECIFICATIONS

• system type : 15” 2-way speaker
• Frequency range (-10dB) : 38 Hz – 16 kHz
• Frequency Response (±3 dB) : 50 Hz – 12.5 kHz
• sensitivity : 98 dB SPL
• Nominal Impedance : 8 Oh
• Power Capacity : 250 watts
• Peak Power Capacity : 1000 watts
• Recommended Amplifier Power : 250 - 500 watts @ 8Ω
• Maximum SPL (1m) : 128 dB
• Nominal Dispersion : 90° × 50°
• crossover point : 1.6 kHz
• Dimensions (H x W x D) : 681 mm × 455 mm × 422 mm(26.8 in × 17.9 in × 16.6 in)
• Net Weight : 23.9 kg (52.7 lbs)
• Shipping weight : 29.1 kg (64.2 lbs)
• HF driver : JBL 2412 1” exit compression driver mounted on Progressive TransitionTM Waveguide
• low frequency drive unit : JBL M115-8A
• Input Connector : Parallel Neutrik Speakon® NL-4 (×1)；1/4” TS phone jack (×1);
• ENCLOSURE CONSTRUCTION : 15 mm (0.6 in) MDF (Medium Density Fiberboard) with glued and mechanically fastened joint detail; black painting.
• Grille : 18-gauge, powder-coated steel
• Mounting & Suspension : 36 mm, dual-angle pole-mount socket; 12×M10 suspension points
