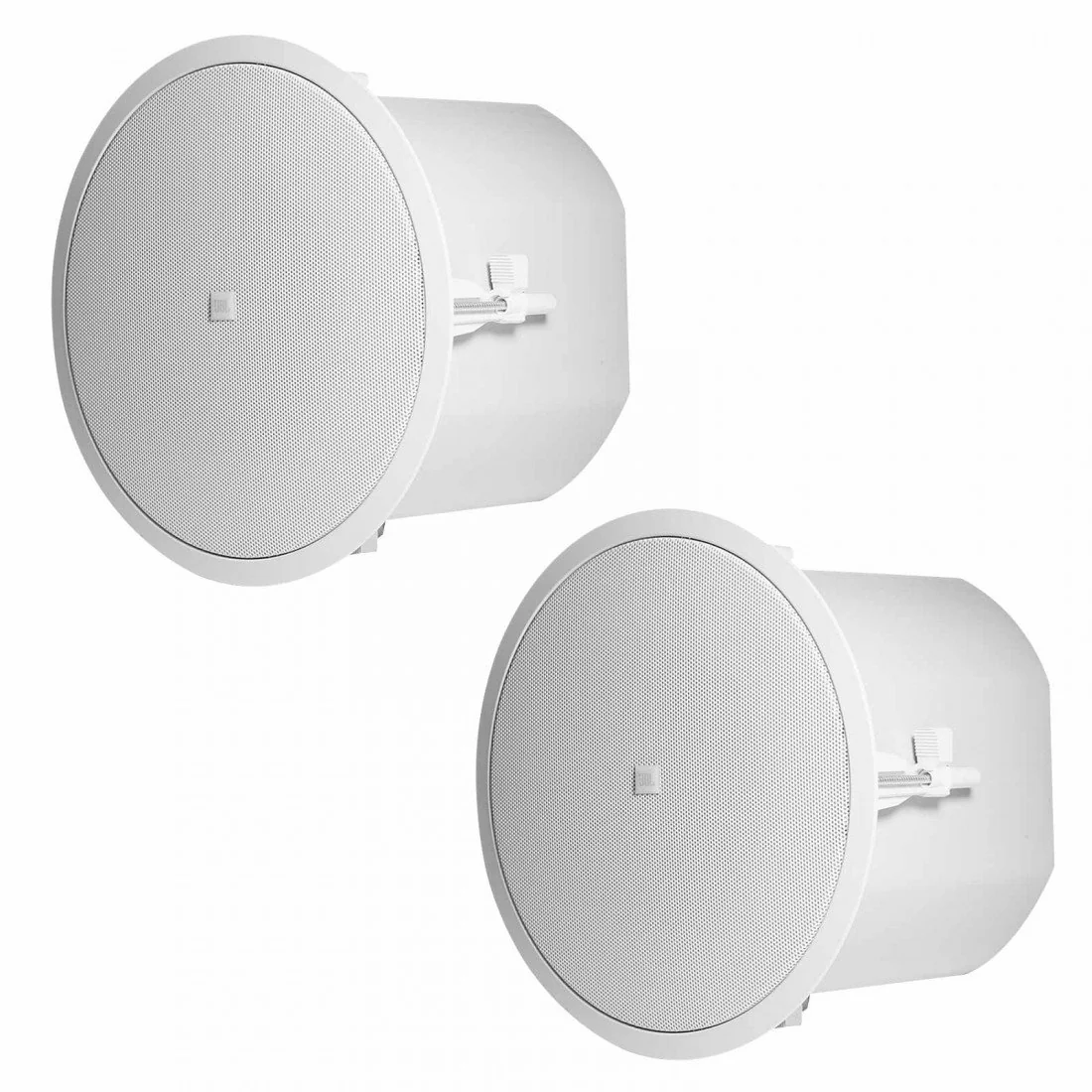

JBL Control 226C/T 6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver - Pair (Control226C/T / 226CT)

---

The JBL Professional Control 226C/T is a premium in-ceiling professional loudspeaker designed for applications requiring superior quality sound in ceiling mount applications.

---

FEATURES

• Consistent 120° broadband pattern control for exceptional coverage
• Coaxial design featuring:
• Kevlar-reinforced 165 mm (6.5 in) woofer
• 25 mm (1 in) compression driver
• Extraordinary clarity for speech and vocals with extended frequency response for music
• 150 Watts Power Handling
• Advanced high-slope crossover network for constant coverage and smooth, natural midrange
• Integrated back can with clean, contemporary grille

---

SPECIFICATIONS

• Frequency Range (-10dB) : 47 Hz - 19 kHz
• Power Rating : IEC Long-Term System Power Rating : 150 W continuous pink noise (600 W peak), 2 hrs 100 W continuous pink noise | (400 W peak), 100 hrs
• Transformer Taps : 68W, 34W, 17W (& 8.5W @ 70V), plus transformer bypass
• Sensitivity : 90 dB (1 kHz - 16 kHz)
• Coverage Angle : 120° conical, constant directivity
• Drivers : LF Driver: 165 mm (6.5 inch) | HF Driver: compression driver, 25 mm (1 inch) coil
• Dimensions (H x Dia) : Ø 330 mm (13 in) round baffle x depth from back of baffle of 246 mm (9.7 in)
• Net Weight (each) : 9.1 kg (20.0 lb)
• Shipping Weight (pair) : 23.9 kg (52.5 lb)
• Maximum SPL (1m) : 112 dB (low-impedance, 118 dB peak) | 108 dB (top 70V/100V tap)
• Impedance : 8 ohms (in direct/bypass setting)

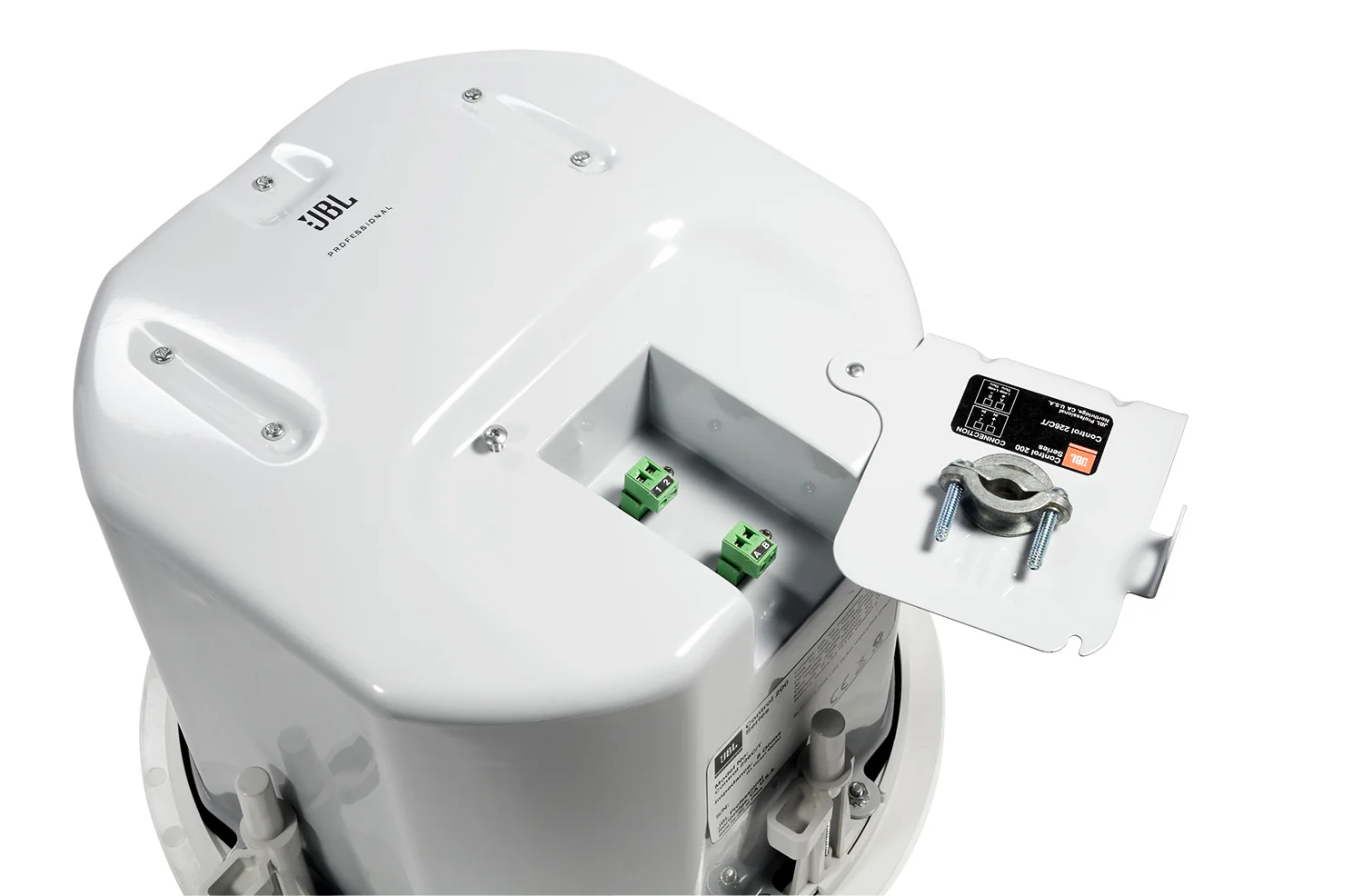

• Input Connectors : Removable locking connector with screw-down terminals.
• Color : White
• Safety Agency : Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

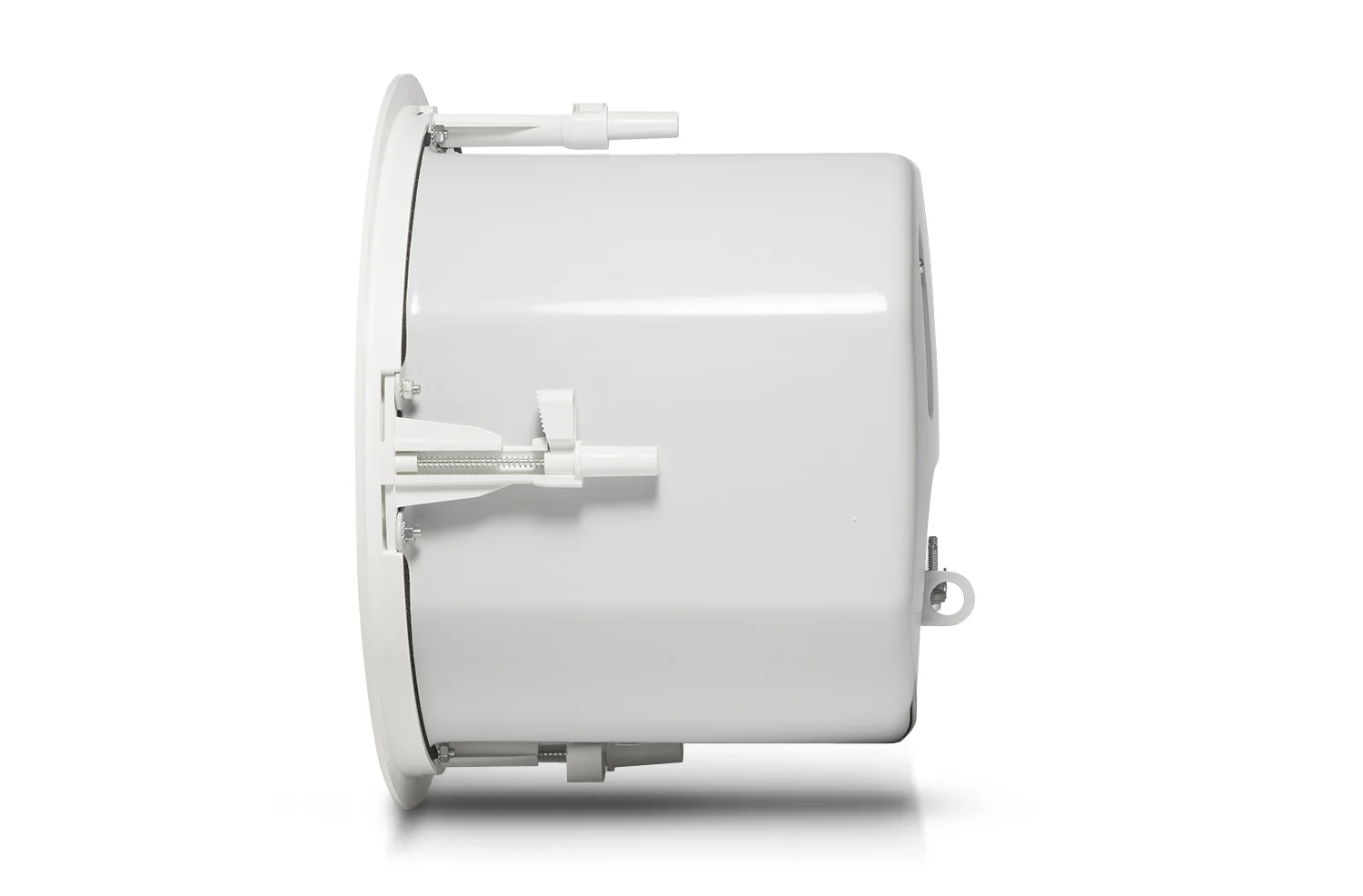

• Backcan : formed steel (included "blind-mount")
• Baffle/Rim : ABS baffle with UL94-V0 flame class fire rating.
• Ceiling Cutout Size : 307 mm (12.1 in) diameter (cardboard cutout template included)
• Included Accessories : Press-in Grille, C-Ring, Tile Rails.

---
