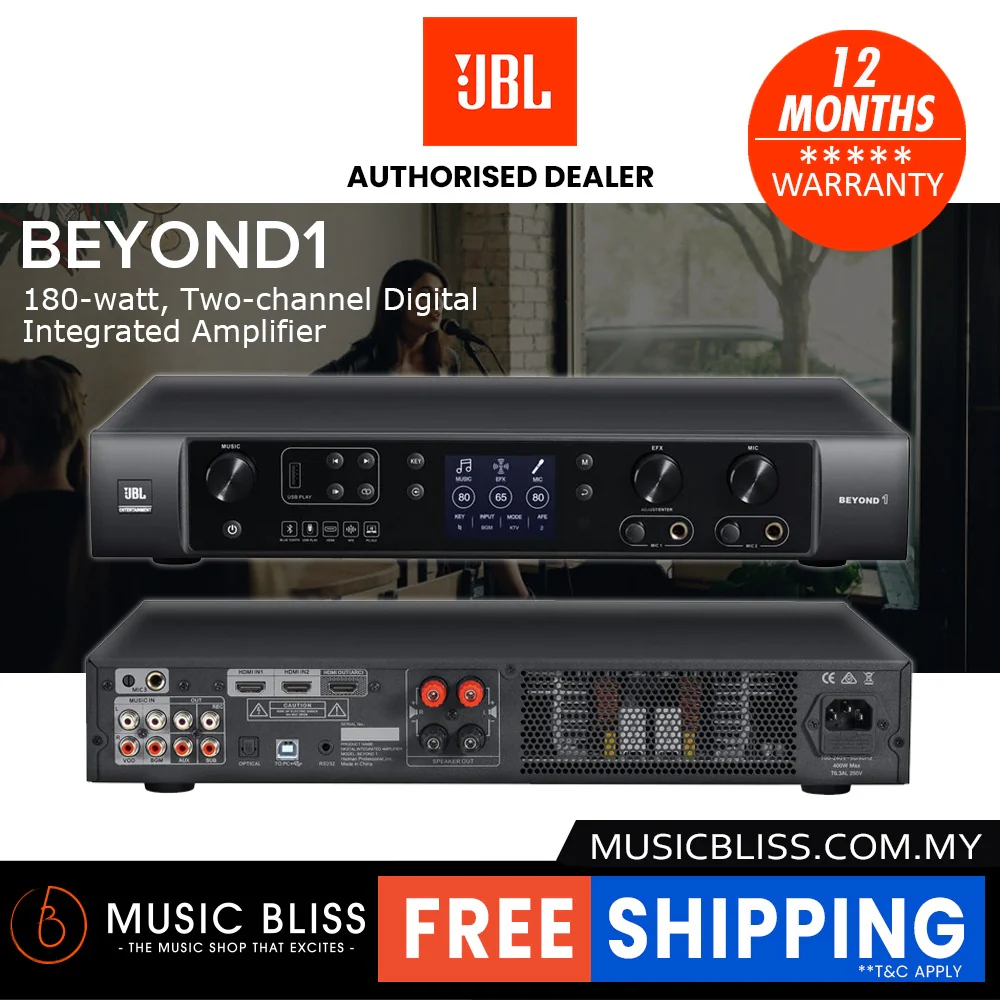

JBL Beyond 1 Karaoke Amplifier (Beyond1)

---

180-watt, Two-channel Digital Integrated Amplifier
The JBL BEYOND1 is designed for small-club and smart-home karaoke applications that demand signature JBL sound quality and comprehensive processing features in an affordable, easy-to-use package.

BEYOND series amplifiers deliver unforgettable karaoke experiences, thanks to signature JBL Entertainment effects including pitch shift, echo, reverb and EQ, with feedback protection and customizable presets. The series continues the tradition of excellence that’s made JBL the leading brand in karaoke systems, featuring top-grade components and materials and robust, efficient 180-watt, two-channel Class D amplification.

Systems look as great as they sound, with a sleek, stylish design and an illuminated JBL Entertainment logo that lets customers and venue owners showcase superior JBL sound quality.

The BEYOND1 provides exceptional karaoke sound at an affordable price point and is built to JBL’s uncompromising performance standards. It seamlessly matches a range of karaoke systems.

---

FEATURES

• High-efficiency 180-watt, two channels Class D amplifier
• Signature JBL karaoke sound digital processing enhances the singing experience in karaoke applications, with pitch change, echo and reverb
• 8 user-definable presets
• 15-band parametric EQ on microphone and music inputs
• Three-level Auto Shift Frequency Feedback Suppression provides clean, clear vocals
• Two RCA inputs and one optical input
• Two HDMI inputs and one HDMI output (ARC)
• Bluetooth and USB inputs offer flexible music connectivity

---

SPECIFICATIONS

Rated Power	2CH 180W at 8Ω
Amp Type	Class-D
Display	2.8-inch LCD
Frequency Response	20Hz - 20kHz, +1/-1dB (RCA Input) 50Hz - 14kHz, +1.5/-3dB (1/4" TRS Input)
Total Harmonic Distortion (THD)	<= 1%, 20Hz - 20kHz
Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted)	>=85dB (RCA Input) >=75dB (1/4" TRS Input)
Input Impedance	3.2kΩ
Music Input	VOD (RCA pair) x1 BGM (RCA pair) x1 HDMI x2 Optical x1 Bluetooth x1 USB Playback x1
Microphone Input	Front (TRS) x2 Rear (TRS) x1
Output Connectors	ARC (HDMI) x 1 AUX (RCA pair) x 1 Recording output (RCA) x1 Subwoofer output (RCA) x1 Speaker output (Binding Post) x2
Control Connectors	PC (USB Type B) x1 RS232 (3.5mm socket) x1
Dimensions (w x h x d)	16.85" x 2.99" x 12.4" (428mm x 76mm x 315mm)
Net Weight	11.90lb (5.4kg)
Shipping Weight	15.43lb (7.0kg)
Power Requirements	100V - 240V ~50/60Hz

---
