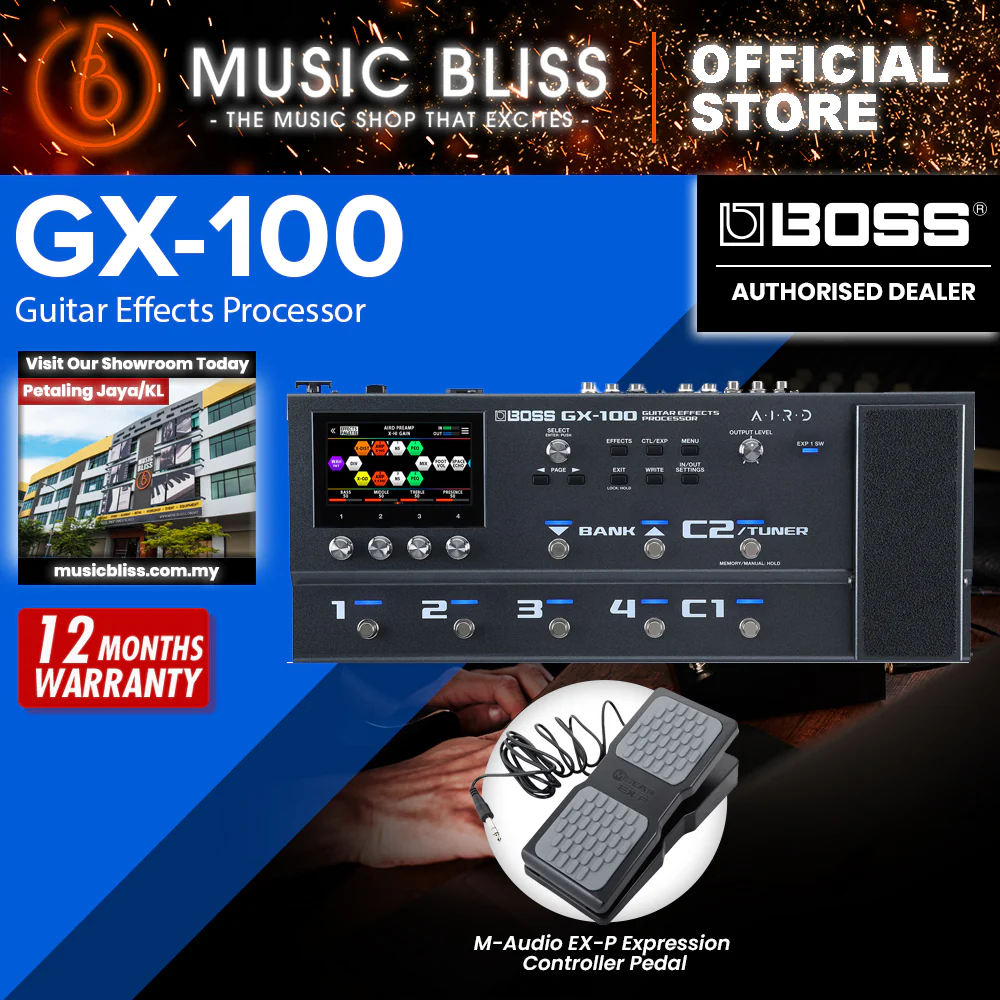

Boss GX-100 Guitar Multi-effects Pedal (GX100)

---

Fusing advanced BOSS tone technologies into a sleek, ultra-modern hardware design, the inspiring GX-100 delivers top-level performance everywhere you play. Explore 23 AIRD amplifiers and over 150 effects derived from the flagship GT-1000, and craft great sounds in seconds with the intuitive color touch display. Up to 15 simultaneous effect blocks provide unlimited tone possibilities, coupled with deep real-time command via onboard footswitches, an expression pedal, and external control support.

---

FEATURES

• Powerful, easy-to-use amp/effects processor for guitar and bass
• 24-bit AD/DA, 32-bit floating-point processing, and 48 kHz sampling rate
• Authentic tube amplifier tone and touch response with AIRD technology
• 23 amplifier types and over 150 BOSS effects
• Ultra-flexible amp/effect routing with 15 assignable blocks
• Wide selection of onboard speaker types and support for loading WAV speaker IRs
• Streamlined modern design with intuitive color touch display and rugged metal chassis
• Unlimited effects control with freely assignable onboard footswitches and expression pedal with toe switch
• Connect up to two footswitches or an expression pedal for expanded control
• Send/return loop for external pedals or four-cable method
• Control jack for remote channel switching on your amplifier
• MIDI I/O jacks and multi-channel computer recording via USB
• Edit sounds from your computer with BOSS Tone Studio for macOS and Windows
• Optional Bluetooth® Audio MIDI Dual Adaptor allows you to edit sounds and stream audio from an iOS or Android mobile device

---

SPECIFICATIONS

• Sampling Frequency : 48 kHz
• AD Conversion : 24 bits + AF method
• AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
• DA Conversion : 24 bits
• Processing : 32-bit floating point
• Effects : 154 Types
• Maximum Number of Effects : 15+3 (DIVIDER/MIXER, SEND/RETURN, PHRASE LOOP)
• *depending on the circumstances
• Memories : 200 (User) + 100 (Preset)
• Phrase Loop : 38 sec. (MONO)
• 19 sec. (STEREO)
• Tuner Internal Detection : +/-0.1 cent
• Nominal Input Level : INPUT: -10 dBu
• RETURN: -10 dBu
• Maximum Input Level : INPUT: +18 dBu
• RETURN1: +8 dBu
• Input Impedance : INPUT: 1 M ohm
• RETURN: 1 M ohm
• Nominal Output Level : OUTPUT (L/MONO, R): -10 dBu
• PHONES: -10 dBu
• SEND: -10 dBu
• Output Impedance : OUTPUT (L/MONO, R): 1 k ohm
• PHONES: 44 ohms
• SEND: 1 k ohm
• Recommended Load Impedance : OUTPUT (L/MONO, R): 10 k ohms or greater
• PHONES: 44 ohms or greater
• SEND: 10 k ohms or greater
• Controls : BANK DOWN switch, BANK UP switch, CTL1 switch, CTL2/TUNER switch, 1--4 switches, POWER switch, EXP1 switch, GND LIFT switch
• EFFECTS button, CTL/EXP button, MENU button, EXIT button, WRITE button, IN/OUT SETTINGS button, PAGE button,1--4 knobs
• SELECT knob, OUTPUT LEVEL knob, EXP1 pedal
• Display : Color Graphic LCD (480 x 272 dots) Touch screen
• Connectors : INPUT jack, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN jack: 1/4-inch phone type
• PHONES jack: Stereo 1/4-inch phone type
• CTL3, 4/EXP2 jack, AMP CTL1, 2 jack: 1/4-inch TRS phone type
• MIDI (IN, OUT) connectors
• USB COMPUTER port: USB B type
• Bluetooth ADAPTOR connector: Dedicated connector
• DC IN jack
• Power Supply : AC adaptor
• Current Draw : 1.2 A

---
