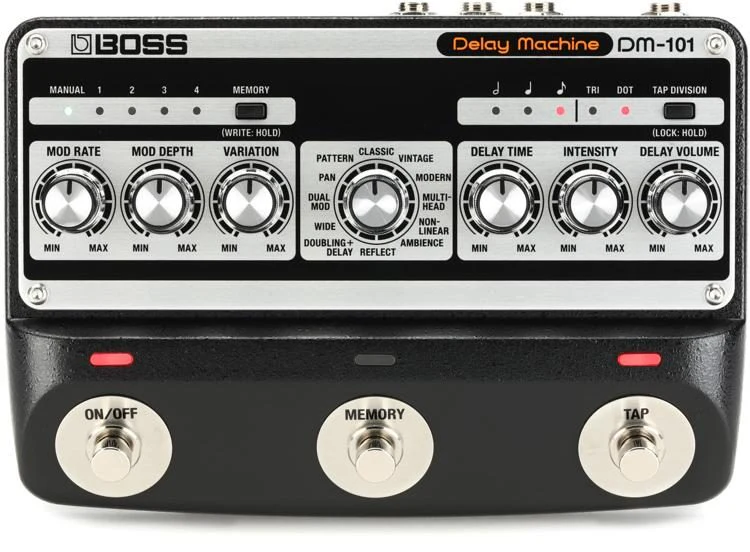

Boss DM-101 Delay Machine Pedal (DM101)

---

The BOSS DM-101 Delay Machine is the surefire cure for your intense analog delay cravings. This digitally controlled, BBD-fueled guitar effects pedal gives you 12 inspiring modes ranging from gritty, vintage-style slaps to crystal-clear, modern-sounding repeats. The DM-101's modulation section includes Rate and Depth controls, along with a Variation knob for added versatility. You also get stereo operation with flexible routing, selectable carryover to safeguard against chopped-off delay trails, and tap tempo with note subdivisions. The DM-101 includes four onboard memories, a total of 127 MIDI-accessible memories, and expandable control via external footswitches, expression pedals, and MIDI. Players who prefer the warm, saturated sound of an analog delay — and require precision digital control — will no longer have to compromise on either: the DM-101 Delay Machine gives you all the bucket-brigade-spawned tone you can handle, along with a level of flexibility that holds its own against any modern digital offering.

---

FEATURES

• BBD-fueled analog delay with modern CPU control
• 8 bucket brigade devices yield a warm, saturated, highly musical sound
• Digital control facilitates a level of control not available with typical BBD analog delays
• 12 inspiring modes range from gritty, vintage-style slaps to crystal-clear, modern-sounding repeats
• Modulation section with Rate and Depth controls, along with a Variation knob for added versatility
• Stereo operation with flexible panning and routing
• Selectable carryover safeguards against chopped-off delay trails
• Tap tempo with note subdivisions
• 4 onboard memories; 127 MIDI-accessible memories
• Expandable control via external footswitches, expression pedals, and MIDI
• Configurable audio outputs accommodate blended operation, wet/dry rigs, and wet-only parallel setups

---

SPECIFICATIONS

• Pedal Type:Delay
• Analog/Digital:Analog (delay), Digital (control)
• Presets:4 Onboard Presets, 127 Midi Presets
• Effects:Classic, Vintage, Modern, Multi-head, Non-linear, Ambience, Reflect, Doubling+Delay, Wide, Dual Mod, Pan, Pattern
• Max Delay Time:1200ms (Mode Dependant)
• Tap Tempo:Yes
• Inputs:1 x 1/4"
• Outputs:2 x 1/4" (A/Mono, B)
• MIDI I/O:2 x 1/8" TRS (In, Out)
• Other I/O:1 x 1/4" TRS (Ctl 1, 2/expression)
• USB:1 x Micro-B (program updates)
• Bypass Switching:Buffered Bypass
• Power Source:9V DC Power Supply
• Power Usage:260 mA
• Height:2.04"
• Width:7.56"
• Depth:5.23"
• Weight:1.87 lbs.

---
