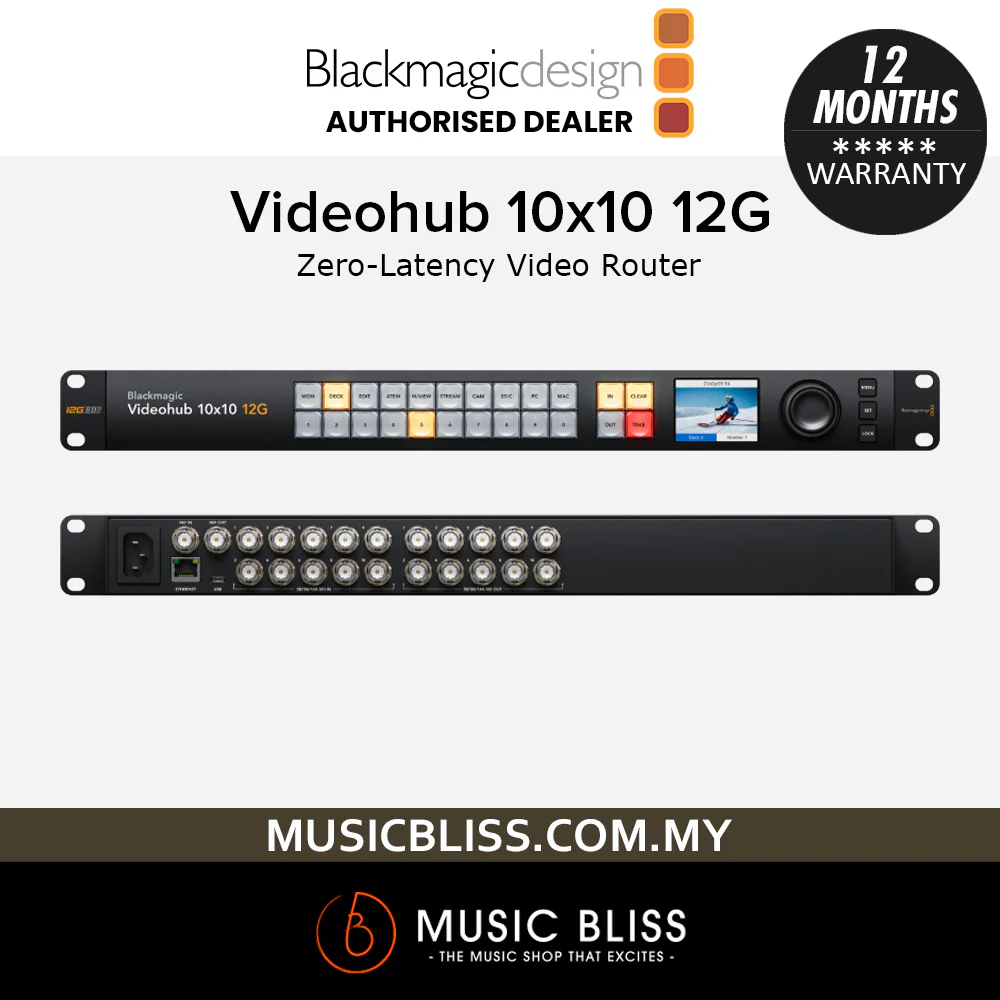

Blackmagic Design Videohub 10x10 12G Zero-Latency Video Router

---

If confusing SDI cabling routes are plaguing your studio paths, let the Blackmagic Design Videohub 10x10 12G video router be your Grand Central Station. A streamlined workflow for all the SDI ins and outs of your live production or broadcast system, the Videohub 10x10 12G sports 10 SDI input and 10 SDI outputs that allow you to send SD, HD, and Ultra-HD video with absolutely zero latency. And with this system running your setup, the complexities of pairing sources are virtually eliminated since the Videohub 10x10 12G allows you to manage the intricacies of each connection electronically. Monitors now have access to any SDI source in your studio; multi-hyper deck and multi-streaming processor setups run with greater efficiency; and input expansions for your separate ATEM devices are closer than ever. Plus, the intuitive control layout and LCD make everything easily navigable right from an existing 1RU space or tech cart. Whatever the SDI demands of your production space may be, the Blackmagic Design Videohub 10x10 12G video router from Music Bliss is a surefire way to manage it all with streamlined operation.

---

FEATURES

• 10 In x 10 Out 12G-SDI connections for all your compatible broadcast/production sources
• Delivers SD, HD, and Ultra-HD results in 10-bit color depth and formats up to 2160p60
• Integrated SDI re-clocking eliminates the signal degradation of long cables
• Phenomenal SDI compliance with enormous HD, 2K, and 4K standards compatibility
• TV-standard 48Hz and 24-bit audio sampling with synchronized embedded audio channels
• Reference inputs and outputs for Tri-sync/Black/Burst and reference terminating loop outputs
• Ethernet 10/100/1000 BASE-T connectivity and a USB-C for computer connections
• LCD screen displays In/Out connections and offers instant monitoring
• Large spin knob with built-in electronic clutch delivers effortless navigation
• Numeric keypad and shortcut buttons provide clear and sensible connection assigning
• Mac, iPad, and Windows users receive Videohub Software Control, Videohub Setup, and Developer SDK for remote use, streamlined setup, and protocol customization

---

SPECIFICATIONS

• Type:Video Hub
• Video Inputs:10 x BNC (SDI)
• Video Outputs:10 x BNC (SDI)
• Sync:2 x BNC (ref I/O)
• USB:1 x USB-C
• Other I/O:1 x Ethernet
• Power Source:Standard IEC AC cable (sold separately)
• Height:1.74"
• Width:19"
• Depth:9.3"
• Weight:6.64 lbs.

---
