Blackmagic Design ATEM 2 M/E Constellation UHD 4K Live Production Switcher

---

The ATEM Constellation UHD 4K includes a wide range of broadcast-quality native transitions such as mix, dip, wipe, and more. All transitions can be customized in the system control menus with adjustments for border color, border width, position, direction, and a lot more. The ATEM Constellation switcher includes a powerful digital video effects processor for DVE transitions, which can be used to squeeze the current picture offscreen, revealing a new video under it. The DVE can even be used to create graphic wipe transitions. To eliminate errors, ATEM Constellation UHD 4K features a preview transition feature so you can set up your transitions before you switch it on air.

The ATEM Constellation features two independent DVEs that let you reposition graphics and create picture-in-picture compositions. You get amazing quality, and the DVE supports position, resize, and scale, all in real time. The DVE lets you create professional picture-in-picture effects with customizable 3D borders, shadows, and lighting. DVEs can also be used to create amazing DVE transitions with squeeze and swoosh effects for adding excitement to your programming. You can even combine DVE transitions with custom graphics to create your own graphic wipe transitions. The 2 M/E model includes SuperSource processors for six DVEs.

---

FEATURES

• Supports 12/3G/HD-SDI at 10-Bit

• 20 x 12G-SDI Input, 12 x 12G-SDI Output

• Up to 16-Multiview Monitoring Windows

• Webcam Output via USB-C

• Frame Rate/Format Converter per Input

• 48-Channel Audio Mixer

• 8 x Upstream, 2 x Downstream Keyer

• Chroma/Luma Keyers

• Color/Pattern Generators

• Hardware/Software macOS/Windows Control

---

SPECIFICATIONS

• Available M/E Layers : 2 M/E

• Effect Types : 8x Chroma Key | 11x Luma Key | 2x DVE, Stinger | 2x DVE

• Downstream Keys : 2x Chroma, Luma, DVE

• Generators : 2x Color | 11x Pattern

• Audio Mixing : 48-Channel Mixing

• Processing : Switching Type : Pushbutton, Software

• Latency : 10 Lines

• Processing Resolution : UHD 4K

• Color Processing : 10-Bit 4:2:2

• Input : Number of Video Input Sources : 20

• Video Inputs : 20x BNC (12G-SDI) Female

• Input Video Format :SDI : UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps | 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | 1080i at 50/59.94/60 fps | 720p at 50/59.94/60 fps

• Audio Inputs : 2x 1/4" TRS

• Embedded Audio Input : SDI: 16-Channel

• Output : Video Output Channels : 12

• Video Outputs : 12x BNC (12G-SDI) Female

• Output Video Format :SDI : UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps |1080p at 23.98/24/25/29.97/30/50/59.94/60 fps | 1080i at 50/59.94/60 fps | 720p at 50/59.94/60 fps

• Embedded Audio Output : SDI: 16-Channel

• Multiview Output : 16-Way Multiview

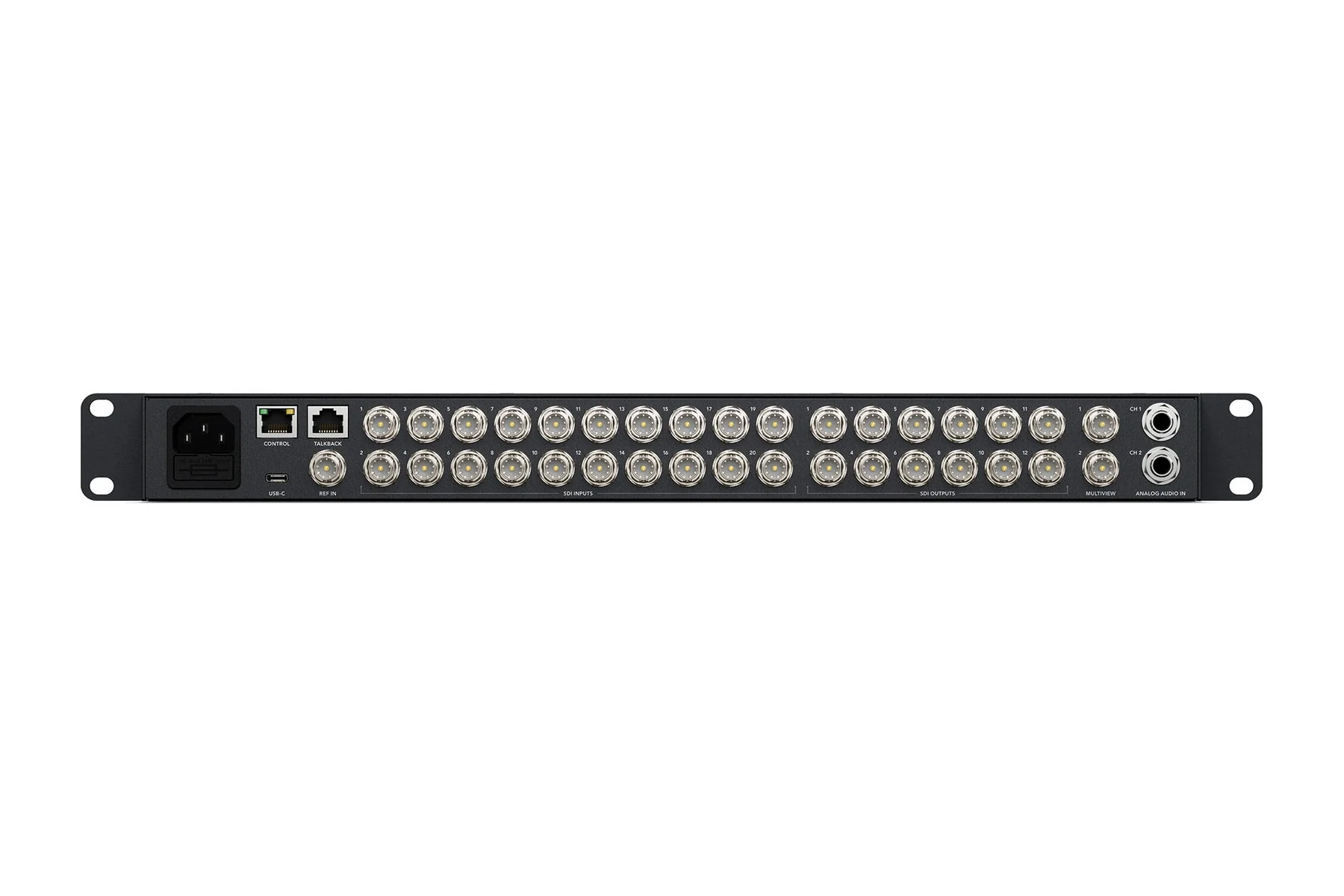

• Connectivity : Other I/O : 1x USB-C | 1x XLR 5-Pin Talkback Input | 1x XLR 5-Pin
• Talkback Output | 1x RJ45 Control, LAN Input/Output | 1x RJ45 Talkback
• Input/Output | 1x BNC Blackburst, Reference, Tri-Level Sync Input

---
