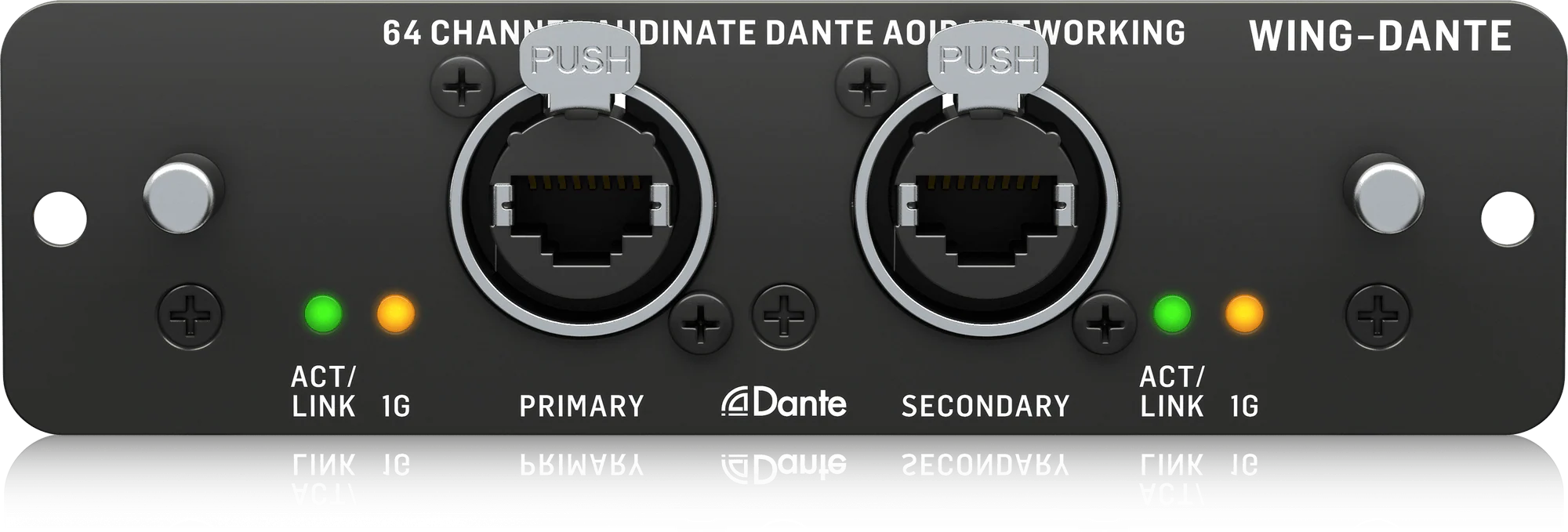

Behringer WING-DANTE 64-channel Dante Expansion Card (WING DANTE)

---

The 64-channel 48 kHz bi-directional audio interface brings even more I/O options to the WING by making it ready for integration with Dante enabled IP networks. Dante is a proprietary AoIP solution from Audinate, which also complies with the AES67 standard for improved interoperability. It uses either standard 100Mbit/s or Gigabit Network infrastructure with DSCP-based QoS, with support for mixed sample and bit rates coexisting on the same network. The WING-DANTE card utilizes 24-bit signal transmission with sample-accurate synchronization and low latency, ensuring the highest audio integrity. Its secondary input allows you to set up a seamless, redundant network access. The WING's expansion slot provides flexible and expandable connectivity for many different applications. The WING-DANTE Expansion Card can easily be installed in place of the WING-LIVE card that is pre-installed. Simply remove the outer two screws left and right and pull the card from the slot. By installing the WING-DANTE card your mixer will immediately speak Dante and interface with any Dante network infrastructure.

---

FEATURES

• 64-channel 48 kHz, bi-directional audio interface for Dante* IP networks
• Low-latency 24-bit signal transmission with sample-accurate synchronization
• Allows interfacing with standard 100 MBit/s or Gigabit network infrastructure with DSCP-based QoS
• Mixed sample and bit rates can coexist on the same Dante network
• WING remote control possible on the same network, using the integrated Ethernet switch
• Audinate* Dante Controller application with full control over configuration and signal routing among all Dante-enabled devices
• Dante Virtual Soundcard allows employing your PC or Mac* for IP-based multitrack recording and playback of up to 64 channels (license optionally available at www.audinate.com)
• Secondary connection can be configured for seamless redundant audio networking

---

SPECIFICATIONS

• Type : Dante Expansion Card
• Compatibility : Behringer WING
• Number of Channels : 64
• Data I/O : 2 x EtherCON (primary, secondary)

---
