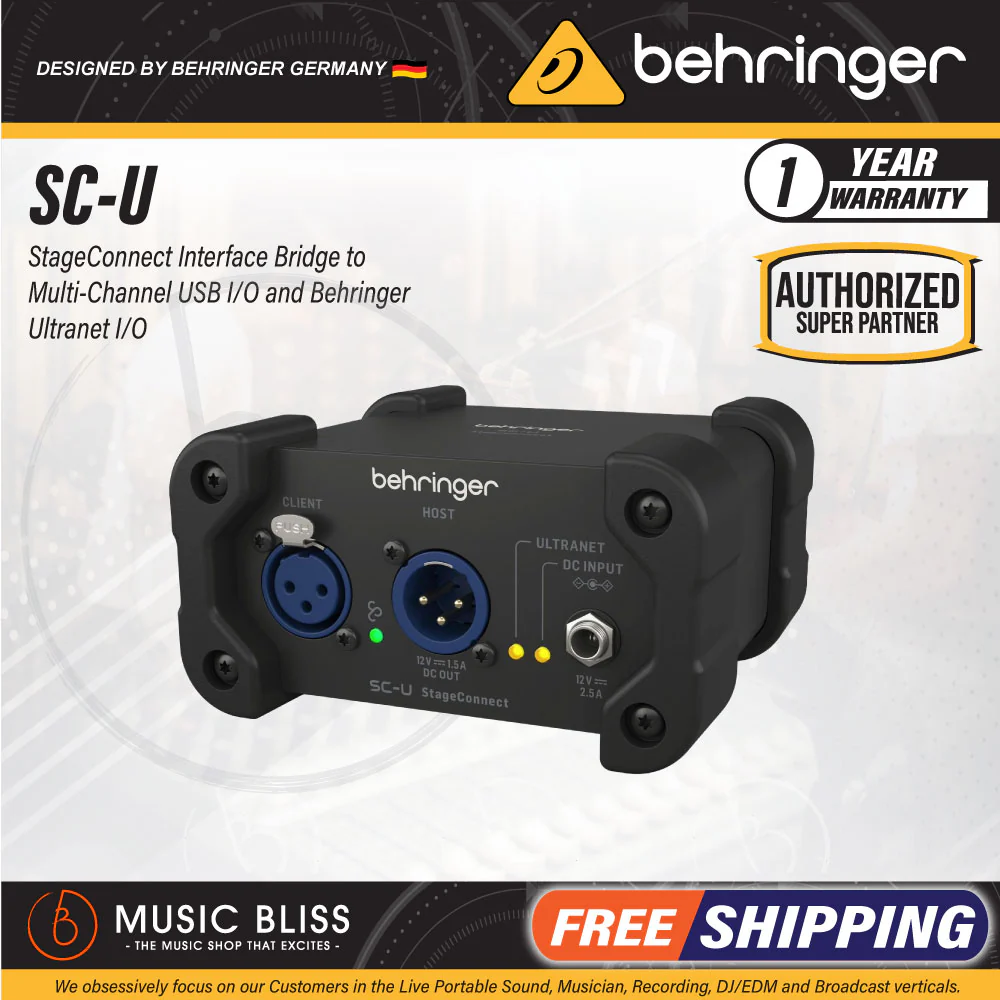

Behringer SC-U StageConnect Interface Bridge to Multi-Channel USB I/O and Behringer Ultranet I/O

---

The Behringer SC-U is a compact StageConnect interface bridge that links your StageConnect ecosystem with multi-channel USB audio and Behringer Ultranet monitoring. Acting as a three-way hub, it lets you route up to 32 channels of audio between your mixer, computer and personal monitoring system with ultra-low latency and rock-solid sample rate conversion. Perfect for modern stages, rehearsal rooms and compact studios, the SC-U keeps your setup tidy by running high-channel-count audio over a single standard XLR cable, while simultaneously feeding multitrack audio to and from your DAW via USB. At the same time, it integrates seamlessly with Ultranet systems such as Behringer P16 personal monitor mixers, so performers can enjoy flexible, independent headphone mixes without adding a separate interface or complex patching.

---

FEATURES

• Three-Way Digital Bridge - Acts as a central hub between StageConnect, multi-channel USB audio and Ultranet systems, allowing you to route up to 32 channels of audio between your mixer, computer and personal monitoring with minimal cabling and configuration.


• 32-Channel StageConnect Audio - Supports 32 channels of bidirectional 24 bit audio at 44.1 or 48 kHz over a single standard 3-pin XLR DMX or mic cable, delivering sub-millisecond latency and dramatically reducing stage clutter compared to traditional analogue multicore solutions.


• Asynchronous Sample Rate Conversion - Onboard 32-channel sample rate conversion with 0.4 ms latency and 140 dB dynamic range enables reliable communication between systems running at different word clocks and sample rates, helping to eliminate clicks, pops and sync issues.


• Compact, Rugged Form Factor - Housed in a sturdy, DI box sized enclosure, the SC-U is built to withstand life on stage or in a mobile rig, while the included external DC power supply ensures stable operation in demanding live and rehearsal environments.

---

SPECIFICATIONS

• Product Type: StageConnect interface bridge

• Function: Bridge between StageConnect, multi-channel USB audio and Behringer Ultranet

• Form Factor: Compact enclosure approximately the size of a DI box

• Power: External DC power supply

• Audio Channels: 32-channel bidirectional transmission

• Sample Rates: 44.1 / 48 kHz

• Bit Depth: 24 bit

• Latency: Sub-millisecond

• Cable Type: Standard 3-pin XLR DMX or mic cable

• Additional Data: MIDI data transmission from USB host computer to StageConnect bus

• Sample Rate Conversion: Asynchronous 32-channel

• Latency (SRC): 0.4 ms

• Dynamic Range: 140 dB

• Word Clock Handling: Communication between systems with different word clocks and sample rates

• USB: Multi-channel audio connection to host computer

• Ultranet: Behringer Ultranet I/O for compatible systems (e.g. P16 products)

• StageConnect Host Connector: For multi-channel audio connections with other
• StageConnect devices

• StageConnect Client Connector: For daisy-chaining multiple StageConnect devices

---
