Behringer Radar Eurorack Module

---

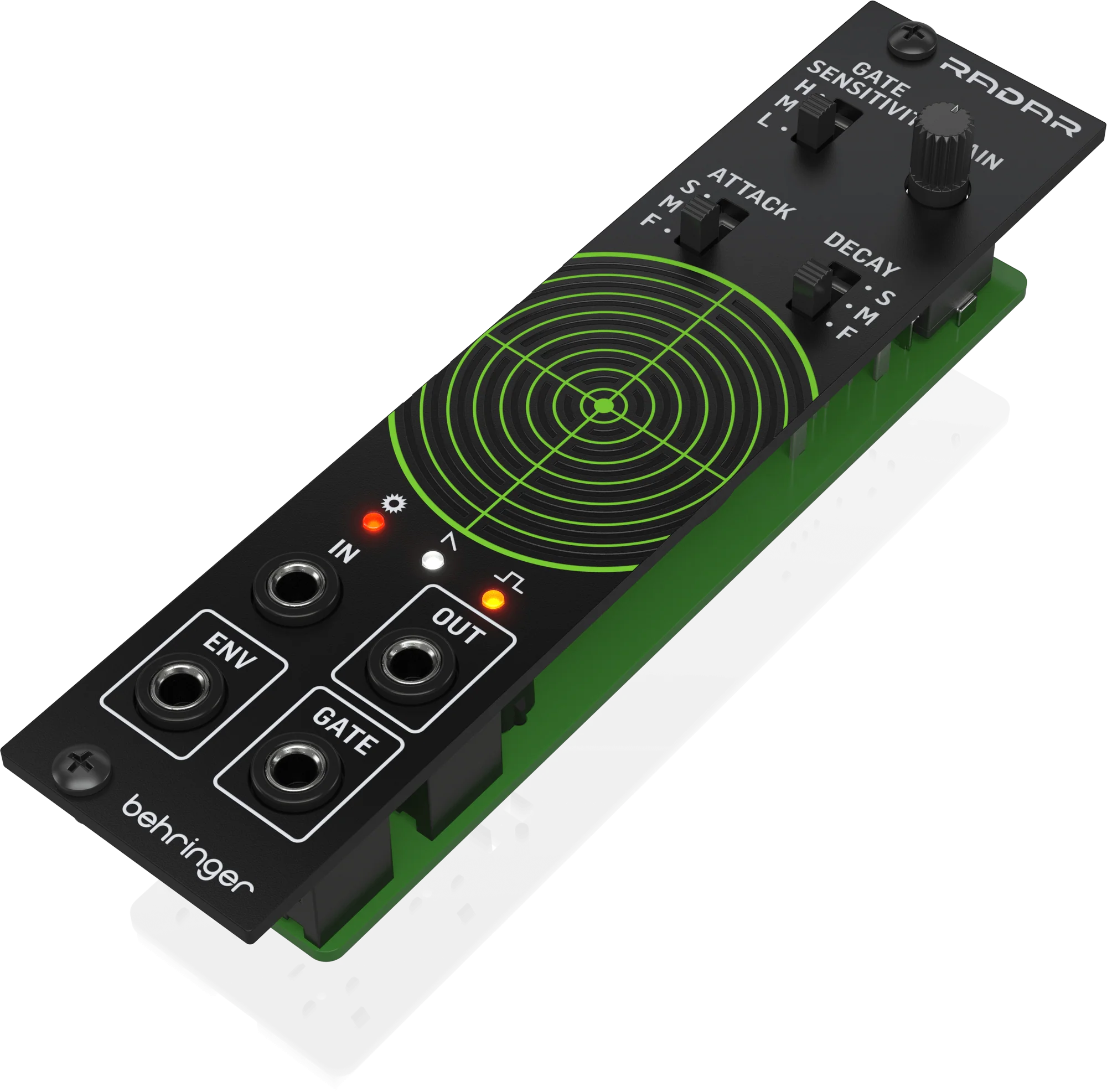

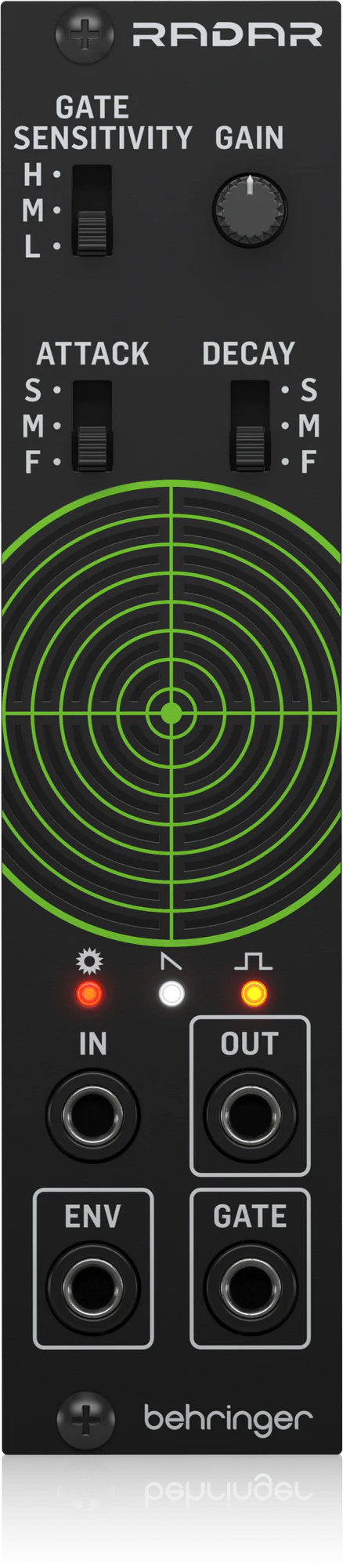

Attention, sound designers: here is something that should be on your radar! The Behringer Radar Eurorack module features a contact/pickup microphone that re-creates your taps and scratches into gate and envelope signals, which can then be patched into other modules. The Radar’s microphone is also sensitive enough to detect soundwaves from other nearby sources, so you can add interesting effects to external snare drums, sounds from loudspeakers, or whatever else your imagination can conjure. The Radar is surprisingly easy to use and only has four controls and switches that give you immediate access to important parameters such as Attack and Decay, plus there are three sensitivity levels (low, medium, and high). Finally, three LEDs provide you with visual information regarding clipping, gate activity, and envelope follower level.

---

FEATURES

• Eurorack module with 6 HP, 10 mA +12 V, and 5 mA -12 V
• Contact/pickup microphone re-creates taps, scratches, and audio from other sources as gates and envelopes
• Incredible sound design potential by simply tapping and scratching the Radar's surface or by detecting soundwaves from nearby sources
• Easy to use: 4 controls and switches give you instant control over all significant parameters
• Connect external microphones or line-level signals, such as guitars with up to +50dB of gain
• Gate detector re-creates your taps and scratches as gate signals with 3 levels of sensitivity: low, medium, and high
• Envelope follower translates your tap profiles into an envelope CV that has 3 attack and release times
• 3 indicator LEDs give you reliable visual information to indicate input clipping, gate detector activity, and envelope follower level

---

SPECIFICATIONS

• Type:Contact/PIckup Microphone Module
• Controls:Gain Knob
• Other Controllers:Gate Sensitivity Switch, Attack Switch, Decay Switch
• Analog Inputs:1 x 1/8" TS
• Analog Outputs:1 x 1/8" TS
• Other I/O:1 x Envelope out, 1 x Gate out
• HP Size:6HP
• Power Usage:±12V/5mA

---
