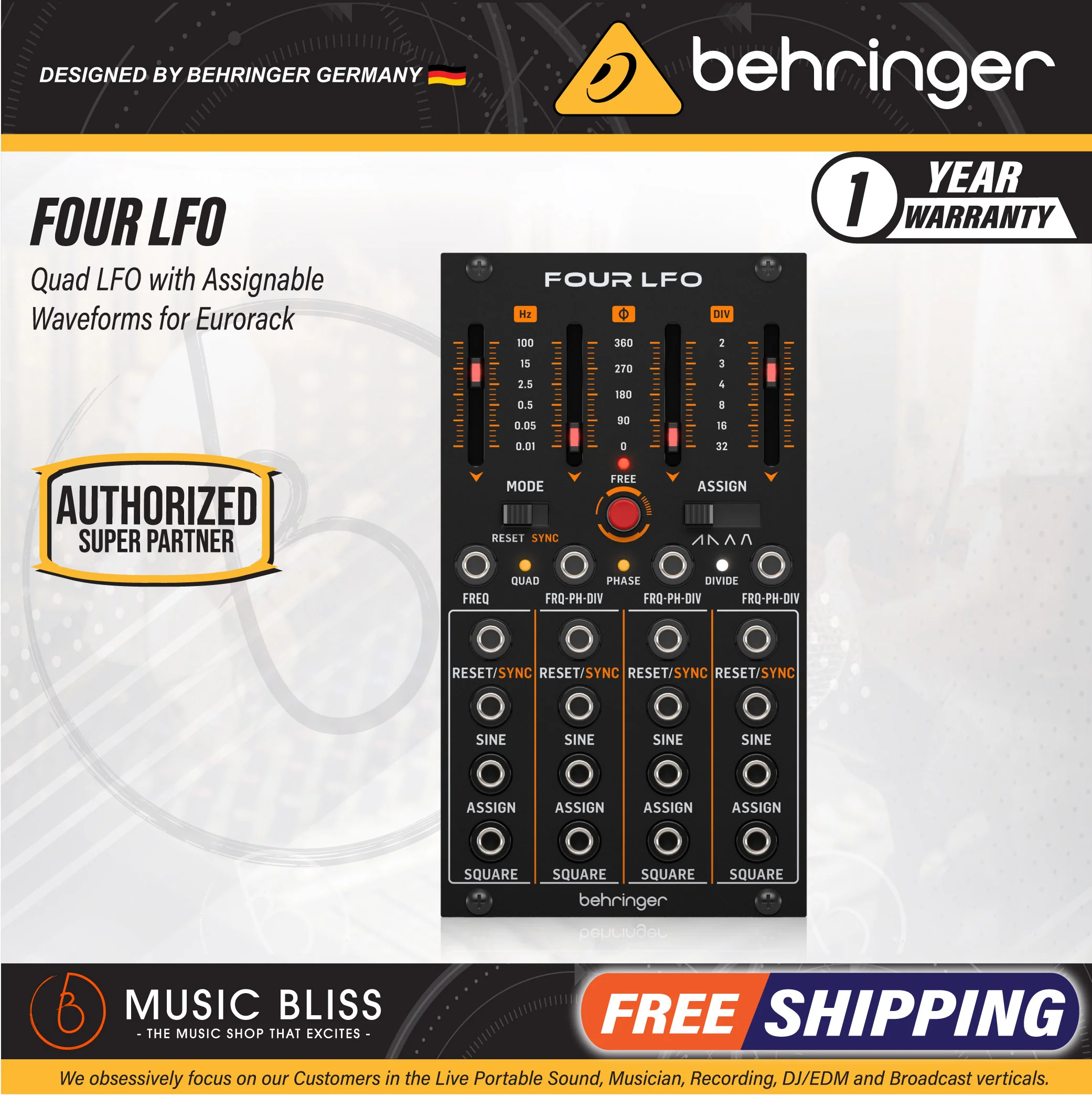

Behringer FOUR LFO Quad LFO with Assignable Waveforms for Eurorack

---

FEATURES

• 4 voltage-controlled LFOs with user-assignable waveforms based on open source Xaoc Batumi*
• 4 faders to control ultra-wide LFO rates from 500 Hz to 28 hours
• Free, quadrature, phase and divide modes for creative sound shaping
• Zoom mode for precise frequency settings
• Reset and sync input for each channel
• Assignable reset and tap tempo inputs
• Sine, square and assignable waveshape outputs
• User-assignable LFO waveforms featuring saw, ramp, triangle and trapezoid
• USB connector for easy firmware update
• 4 controls and switches give you real-time access to all important parameters
• Eurorack specs: 12 HP, 95 mA +12 V, 69 mA -12 V

---

SPECIFICATIONS

• Inputs
• CV in
• Type: 4 x 3.5 mm TS jacks, DC coupled
• Impedance: >1 MΩ, unbalanced
• Max input level: 10 V p-p
• Reset/Sync In
• Type: 4 x 3.5 mm TS jack, DC coupled
• Impedance: >1 MΩ, unbalanced
• Max input level: 10 V p-p
• Outputs
• Sine Out
• Type: 4 x 3.5 mm TS jack, DC coupled
• Impedance: >1 MΩ, unbalanced
• Max output level: 10 V p-p
• Assign Out
• Type: 4 x 3.5 mm TS jack, DC coupled
• Impedance: >1 MΩ, unbalanced
• Max output level: 10 V p-p
• Square Out
• Type: 4 x 3.5 mm TS jack, DC coupled
• Impedance: >1 MΩ, unbalanced
• Max output level: 10 V p-p
• Controls
• Sliders
• 4 x function attenuator
• Switches
• Mode (Reset/Sync) / Assign
• (ramp, saw, triangle, trapezoid)
• Button
• Function (Free, Quad, Phase, Divide)
• LED
• Function (Free, Quad, Phase, Divide)

---
