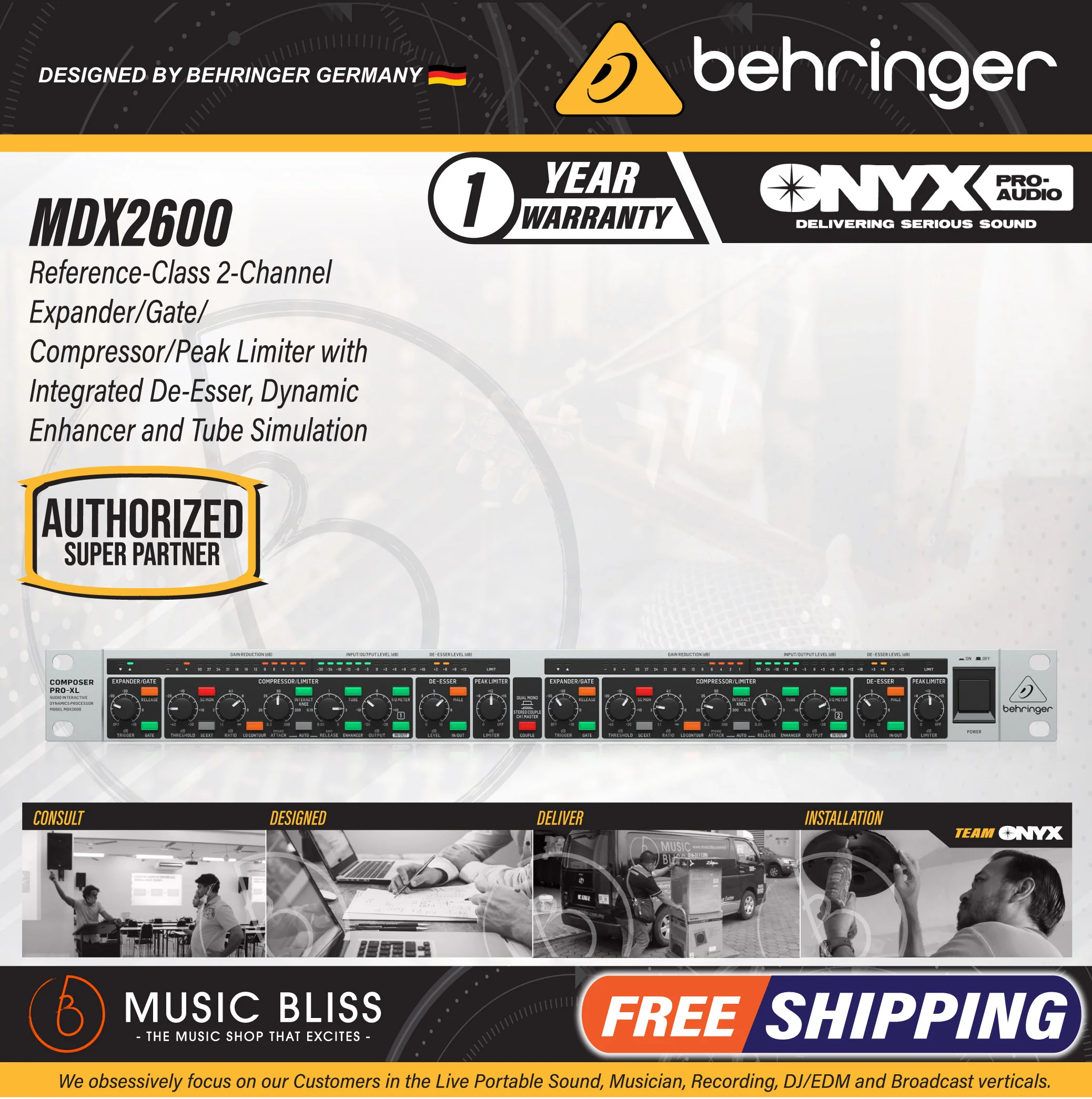

Behringer Composer Pro-XL MDX2600 V2 2-channel Compressor/Limiter/Gate (MDX2600V2 / MDX-2600V2)

---

The Behringer MDX2600 V2 Pro XL is a reference-class dual-channel Expander/Gate/Compressor/Peak Limiter that is perfect for a variety of applications. The MDX2600 V2 features an integrated Dynamic Enhancer, De-Esser, Low-Contour filter and a revolutionary Tube simulation that delivers extra warmth and transparency of classic tube circuitry. The Behringer MDX2600 V2 is suitable for compressing mono/stereo signals while providing inaudible noise suppression without loss of high frequencies, increasing both vocal presence and energy, and limiting or smoothing out extremely-high signal peaks.

---

FEATURES

• Switchable IKA - Interactive Knee Adaptation - program-adaptive compression circuitry combines the advantages of hard-knee and soft-knee characteristics
• Integrated De-Esser with switchable male/female voice recognition removes excessive sibilance from vocal tracks
• IGC - Interactive Gain Control - peak limiting circuitry combines clipper and program limiter for reliable and inaudible protection against signal peaks
• Switchable dynamic Enhancer for brilliant, lively audio even with heavy compression
• IRC - Interactive Radio Control - expander/gate circuitry for virtually inaudible noise suppression
• Switchable Tube simulation for extra warmth and transparency
• Automatically or manually adjustable attack and release times
• Switchable low contour filters that prevent ''pumping'' due to low-frequency dominated compression
• Stereo couple function with independent output level settings
• Switchable sidechain input with monitor function
• Separate 12-segment LED meters for input/output levels and gain reduction
• Dedicated ''traffic light'' threshold and de-esser level displays
• Servo-balanced inputs and outputs with 1/4'' TRS and gold-plated XLR connectors
• Relay-controlled hard bypass switch with auto bypass function in case of power failure

---

SPECIFICATIONS

• Audio Inputs: XLR and 1/4'' TRS Connectors, HF-Shielded, Servo-Balanced
• Input Impedance: 90kΩ Balanced/45kΩ Unbalanced @ 1kHz (+4dBu)
  • 180kΩ Balanced/90kΩ Unbalanced @ 1kHz (-10dBV)
• Maximum Input Level: +22dBu Balanced/Unbalanced
• CMRR: Typ. 40dB, >60dB @ 1kHz
• Audio Outputs: XLR and 1/4'' TRS Connectors, Electronically Controller Servo-Balanced
• Output Impedance: 95Ω Balanced/50Ω Unbalanced @ 1kHz
• Maximum Output Level: +21dBu, +20dBm Balanced/Unbalanced
• Sidechain Inputs: 1/4'' TS Connector, Unbalanced, HF-Shielded, DC-Decoupled
• Sidechain Input Impedance: 45kΩ
• Sidechain Maximum Input Level: +24dBu
• Sidechain Outputs: 1/4'' TS Connector, Unbalanced, HF-Shielded, DC-Decoupled
• Sidechain Output Impedance: 50Ω
• Sidechain Maximum Output Level: +21dBu Bandwidth: 20Hz to 20kHz ±0.5dB
• Frequency Range: 0.35Hz to 200kHz +0dB/-3dB
• S/N Ratio: 115dB Unweighted, 22Hz - 22kHz
• Expander/Gate: IRC (Interactive Ratio Control)
• Compressor: IKA (Interactive Knee Adaptation)
• Peak Limiter: IGC (Interactive Gain Control)
• De-Esser: VAD (Voice Adaptive De-Esser)
• Dynamic Enhancer: IDE (Interactive Dynamic Enhancer)
• Power Supply: 110V - 240V AC, 50Hz/60Hz
• Power Consumption: Max. 15W
• Dimensions: 44.5mm x 482.6mm x 217mm (1.75'' x 19'' x 8.5'')
• Weight: 2.1kg (4.63lbs)

---
