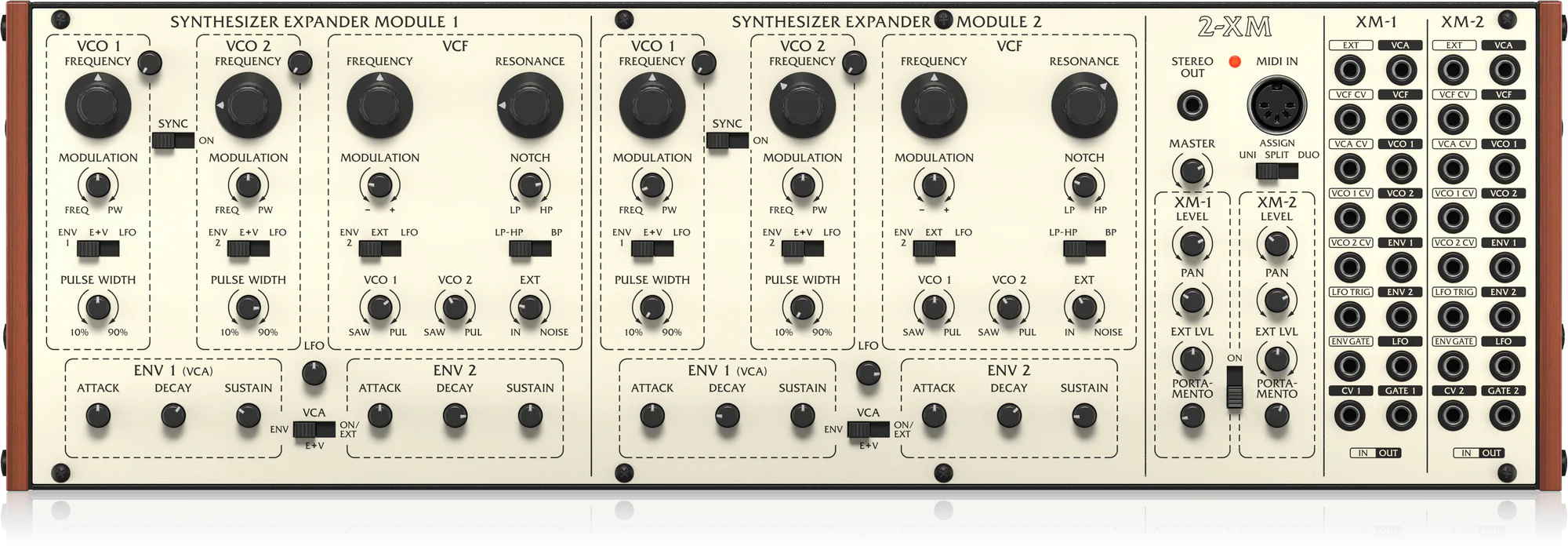

Behringer 2-XM Duophonic Analog Synthesizer Expander Module

---

FEATURES

• Authentic reproduction of famous synthesizer circuitry from the ‘70s
• Pure analog signal path based on authentic VCO, VCF and VCA designs
• 2 independent voices for polyphonic, split or 4 oscillator unison sounds
• 2 variable oscillator shapes with adjustable pulse width for inspiring sounds
• Oscillator sync for piercing lead sounds and complex effects
• 2 legendary multi-mode filters with low-pass, high-pass, band-pass and notch modes
• 2 dedicated and fully analog LFOs with sine waveform
• 4 analog envelope generators for extensive control of filters and amplifiers
• Noise generator dramatically expands waveform generation
• Extensive modulation capabilities, including internal and external sources
• 2-channel mixer section featuring level and pan controls for intense stereo sounds
• Portamento function applicable to both voices for great pitch gliding effects
• 2 external audio inputs for processing external sound sources
• Dedicated audio outputs plus a combined stereo output for maximum flexibility
• Massive amount of CV and GATE In/Outs for extreme creativity
• 16-voice Poly Chain allows combining multiple synthesizers for up to 32 voice polyphony
• Complete Eurorack solution – main module can be transferred to a standard Eurorack case
• 67 controls to give you direct and real-time access to all important parameters
• MIDI and USB implementation with MIDI channel and Voice Priority selection

---

SPECIFICATIONS

• Number of voices
  2 (duophonic)
• Type
  Analog
• Oscillators
  4 VCO
• LFO
  2 LFO
• VCF
  2 LPF 12 dB/octave
• Envelopes
  4 ADS
• Connectivity
  Power switch
  Push button (rear panel)
• MIDI In
  5-pin DIN
• MIDI Thru
  5-pin DIN
• USB
  USB 2.0 Type B socket
• Audio outputs
  3.5 mm TRS stereo (top panel)
• 2 x 6.35 mm TR (rear panel)
• Patchbay
  32 x 3.5 mm TR jack
• USB
  Type
  Class compliant USB 2.0 Type B
• Supported Operating Systems
  Windows 7 or higher
• Mac OS 10.10 or higher
• Master Section
  Controls
  Master Volume
• Module Level x 2
• Module Pan x 2
• External Level x 2
• Portamento x 2
• Switches
  Assign (Uni/Split/Duo)
• Portamento On/Off
• Oscillators
  Controls
  Coarse Frequency x 4
• Fine Frequency x 4
• Modulation x 4
• Pulse Width x 4
• Switches
  Modulation Source x 4
• Sync x 2
• LFOs
  Controls
  Rate x 2
• VCFs
  Controls
  Frequency x 2
• Resonance x 2
• Modulation x 2
• Notch x 2
• VCO1 x 2
• VCO2 x 2
• Ext x 2
• Switches
  Modulation Source x 2
• LP-HP / BP x 2
• Envelope Generators
  Controls
  Attack x 4
• Decay x 4
• Sustain x 4
• Switches
  VCA on / Ext x 2
• Patchbay
  Inputs
  Ext audio x 2 / VCF CV x 2 / VCA CV x 2 / VCO1 CV x 2 / VCO2 CV x 2 / LFO Trig x 2 / Env Gate x 2
• Outputs
  CV1 / Gate1 / CV 2 / Gate2 / VCA audio x 2 / VCF audio x 2 / VCO1 audio x 2 / VCO2 audio x 2 / Env1 CV x 2 / Env2 CV x 2 / LFO CV x 2
• Power Requirements
  Voltage
  12 V DC
• Current
  2000 mA
• Physical
  Standard Operating Temperature
  5°C - 45°C (41°F - 113°F)
• Dimensions (H x W x D)
  91.4 x 424.4 x 135.6 mm
  (3.7 x 16.7 x 5.3")
• Eurorack
  80 hp
• Weight
  1.8 kg (4 lbs)

---
