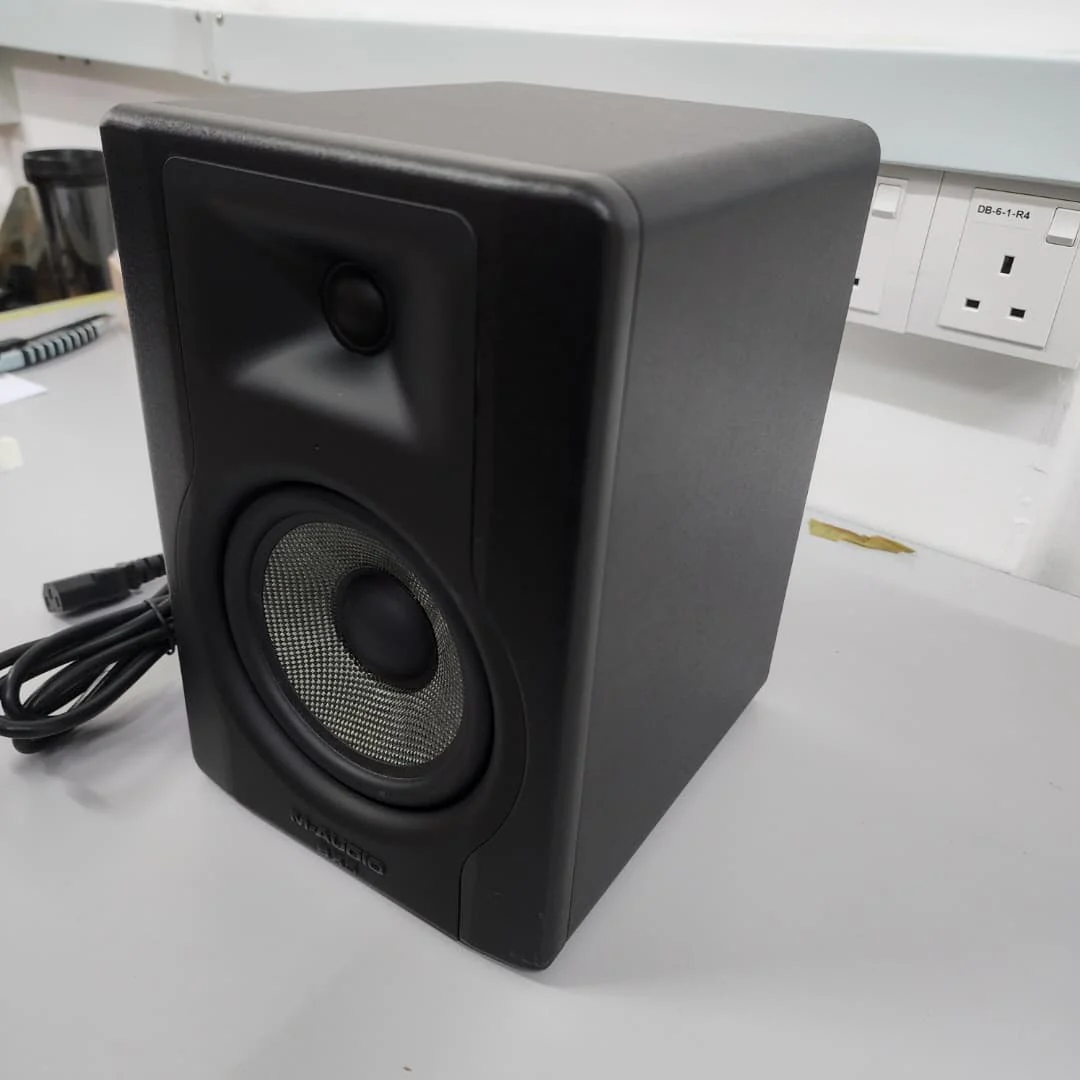

B-STOCK (BS-256) M-Audio BX5 D3 5 inch Powered Studio Monitor (Unit)

---

The BX5 D3 was meticulously engineered to provide accurate sound reproduction. A high-current, high-headroom Class A/B amplifier drives a 5" military-grade Kevlar woofer and 1" silk dome tweeter. The speaker features a bi-amplified design, so it exhibits a sound that's both powerful and precise. A rear-mounted port was built to a specific length and diameter to produce deep, defined bass. A custom waveguide eliminates unwanted high-frequency scatter, ensuring that the BX5 D3's imaging is spot on. And don't worry about positioning — a front-panel LED shines brightly when the BX5 D3 is at the ideal monitor angle.

---

FEATURES

• Bi-amplified design with 100 watts (60 LF, 40 HF) for powerful, accurate sound

• 5” Kevlar low-frequency driver with high-temp voice coil and damped rubber surround

• 1” natural silk dome tweeter delivers superb transient details

• New computer-optimized tweeter waveguide for precise imaging

• Acoustic Space Control to fine-tune low-end response to your room

• Optimized rear port for extended low-frequency response

• XLR balanced and 1/4” balanced/unbalanced inputs for connecting audio interfaces, mixers, synthesizers, DJ gear, and more

• Volume control enables you to dial in the perfect monitor playback level

• Ultra-wide range 52-35kHz frequency response covers full musical spectrum

• Front panel LED shines brightly when speaker is positioned at ideal monitor angle

---

SPECIFICATIONS

• TYPE 2-way near-field studio reference monitors

• LOW FREQ. DRIVER : 5 inch (127mm) Kevlar curved cone with high temperature voice coil and damped rubber surround. Magnetically shielded

• HIGH FREQ. DRIVER : 1 inch (25mm) magnetically shielded natural silk dome

• FREQUENCY RESPONSE : 52 Hz – 35 kHz

• CROSSOVER FREQUENCY : 2.5kHz

• LOW FREQ. AMPLIFIER POWER : 60W

• HIGH FREQ. AMPLIFIER POWER : 40W

• MAXIMUM PEAK SPL : 110 dB SPL - Full Bandwidth Pink Noise Measured

• INPUT SENSITIVITY : -10dBU

• INPUT CONNECTORS : 1x XLR balanced input connector 1x TRS balanced/unbalanced input connector

• INPUT IMPEDANCE : 10kΩ balanced, 20kΩ unbalanced

• POLARITY : Positive signal at + input produce outward LF cone displacement

• PROTECTION : RF interference, output current limiting, over temperature, turn on/off transient, subsonic filter, external mains fuse

• POWER : Voltage: 100–120V, 50/60 Hz / 220–240V, 50/60 Hz Consumption: 100W

• FUSE : 220–240V~ T1AL 250V / 100–120V~ T1.6AL 250V

• CABINET : Vinyl-laminated high-acoustic-efficiency MDF

• DIMENSIONS(WIDTH X DEPTH X HEIGHT) : 6.9” x 7.8” x 10” / 176 x 197 x 254 mm

• WEIGHT : 12.3 lbs, 5.6kg

---

FAQ

Is warranty coverage available for my product?

Yes! Majority of our product provides a minimum 1 year warranty on the electronic parts.

Can I test/check the B-stock product prior to my purchase?

Definitely! You can contact our sales team through 016-3111286 or head over to Music Bliss showroom to view the item before buying it. We are honored to have you here!

How long will it take to deliver?

It usually takes only 3-7 working days for the item to be safely delivered to your doorstep. Self-collection and Lalamove (local delivery) is available as well!

Can I self-collect my item(s)?

Of course! You can head over to Music Bliss showroom for self-collection during our working hours.
10am - 7.30pm (Mon - Thurs)
10am - 7pm (Fri - Sat)
10am - 6pm (Sun)

Can I use Lalamove / Grab / Same Day Delivery as a delivery option?

Yes! Please note that the delivery hour for Lalamove service is only available for local delivery, from 11am to 5pm daily. For delivery ,please check out choosing Lalamove/Grab service or contact the mainline 016-3111286.
