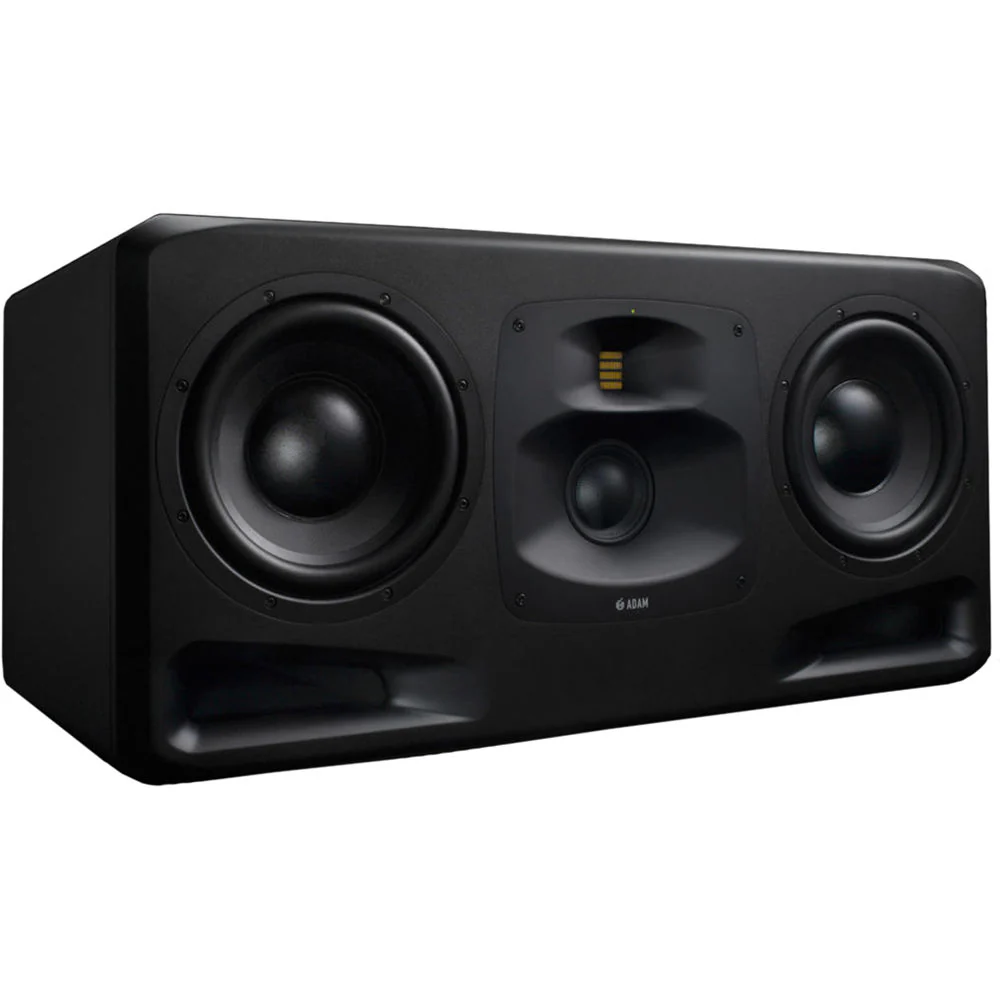

ADAM Audio S5H Dual 10 inch 3-way Powered Studio Monitor

---

The ADAM Audio S5H is an active horizontal 3-way main monitor intended for medium-to-large control rooms. The S5H delivers the power and accuracy professional engineers demand from a precision reference-grade monitor; reproducing high-resolution, full-bandwidth audio with stunning clarity. Engineered in Berlin to the strictest tolerances, ADAM's 3rd-generation S series monitors feature cutting-edge technology, including new Extended Linear Excursion (ELE) woofer and DCH midrange driver designs as well as the S-ART tweeter — an updated, even more precise version of ADAM’s acclaimed accelerated ribbon design. With its astounding, ruler-flat 22Hz–50kHz frequency range, ultra-wide and stable stereo imaging, powerful PWM ICE tri-amplification, and ultra-low distortion, the ADAM Audio S5H provides world-class monitoring you can trust, session after session.

---

PROMOTION

2 Years (Supplier Warranty), extendable to 3 Years upon Registration

---

FEATURES

• Horizontal 3-way system with 2 x 10" HexaCone woofers, 1 x 4" DCH midrange, and S-ART tweeter
• S-ART tweeter, handmade in Berlin and manufactured to the tightest tolerances
• Newly designed HPS and MPS waveguides, milled from a solid block of aluminum
• New midrange driver with one-piece hybrid dome/cone (DCH) design
• Custom-built Extended Linear Excursion (ELE) bass drivers
• Custom-designed Symmetrical Magnet Assembly (SMA)
• Spacious bass reflex ports on the front baffle
• Highly efficient 1,100W PWM ICE Power tri-amplification
• Linear frequency response of 22Hz–50kHz
• Maximum peak sound pressure per pair at 1m ≥ 131dB
• Custom DSP engine
• Analog XLR inputs
• AES3 digital I/O

---

SPECIFICATIONS

• Powered:Yes
• Power Configuration:Tri-amped
• LF Driver Size:10" woofer
• LF Driver Type:Hexacone
• MF Driver Size:4" DCH
• MF Driver Type:Carbon Composite
• HF Driver Size:2" S-ART tweeter
• LF Driver Power Amp:700W
• MF Driver Power Amp:300W
• HF Driver Power Amp:100W
• Total Power:1100W RMS
• Frequency Response:22Hz-50kHz
• Crossover Frequency:250Hz, 3000Hz
• Maximum Peak SPL:≥131dB
• Input Types:1 x XLR, 1 x XLR (AES/EBU)
• Output Types:1 x XLR (AES/EBU)
• USB:1 x Type B
• Enclosure Type:Ported
• Height:16.9"
• Width:34.8"
• Depth:19.7"
• Weight:160 lbs.

---
